Ex Aluminium Junction Box - IECEx ATEX Hazardous Area Zone 1,2
Ex Aluminium Junction Box - IECEx ATEX Hazardous Area Zone 1,2
Couldn't load pickup availability
76 in Stock Ready to Ship

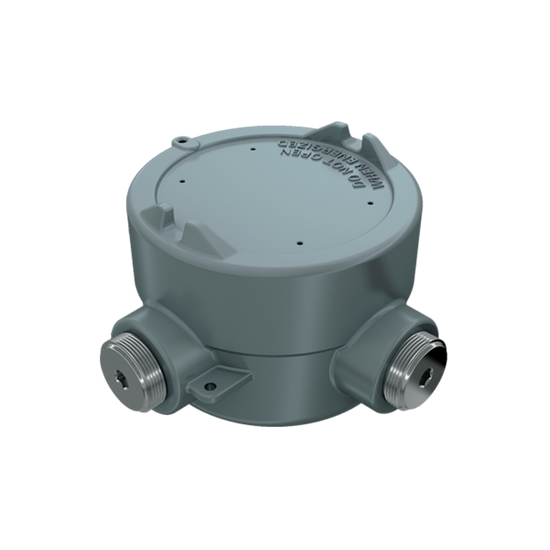

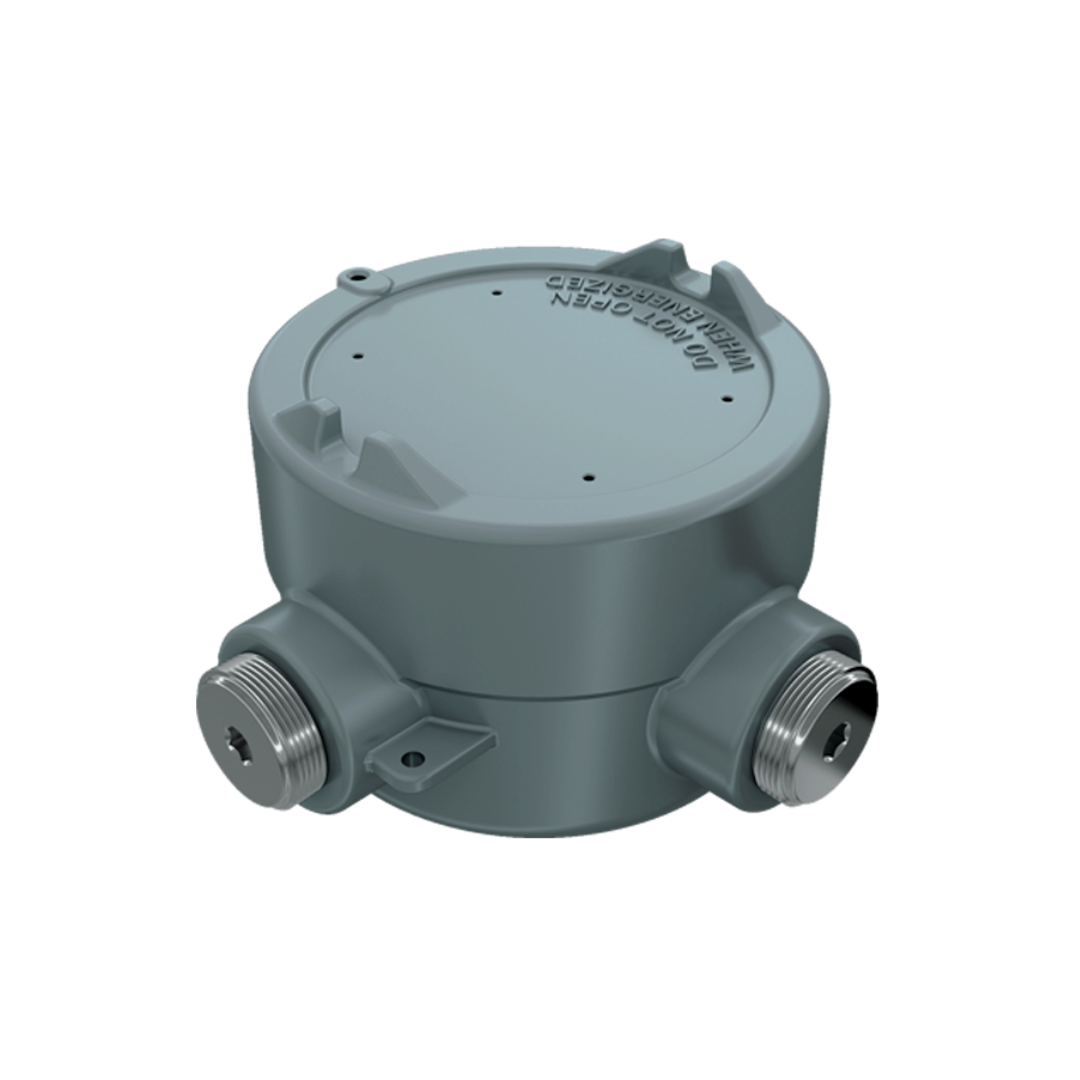

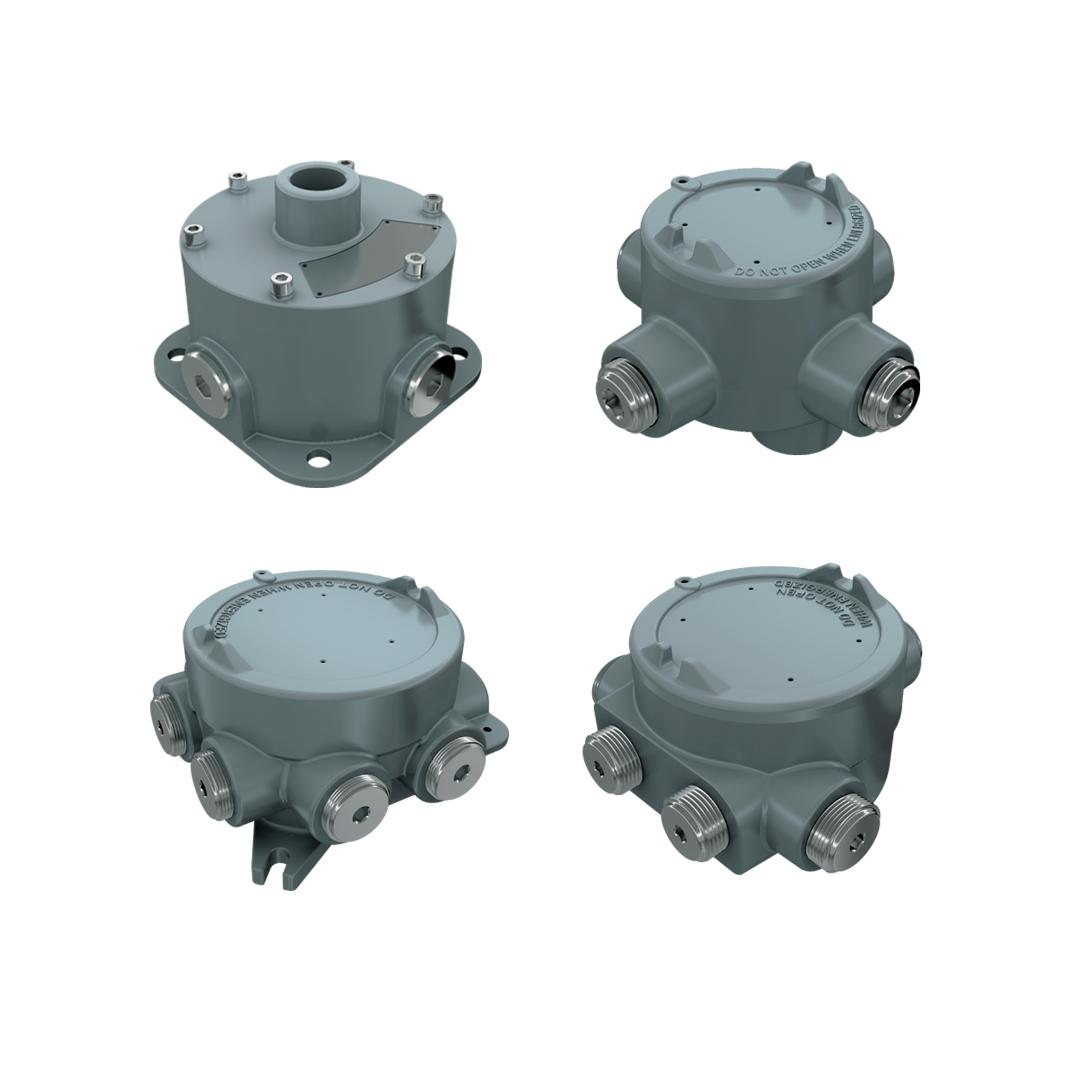

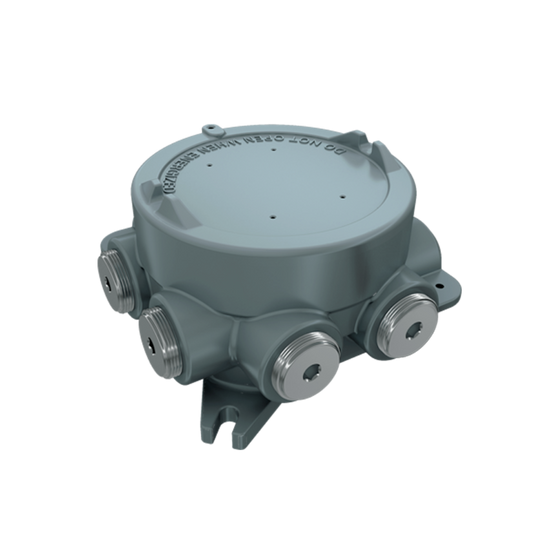

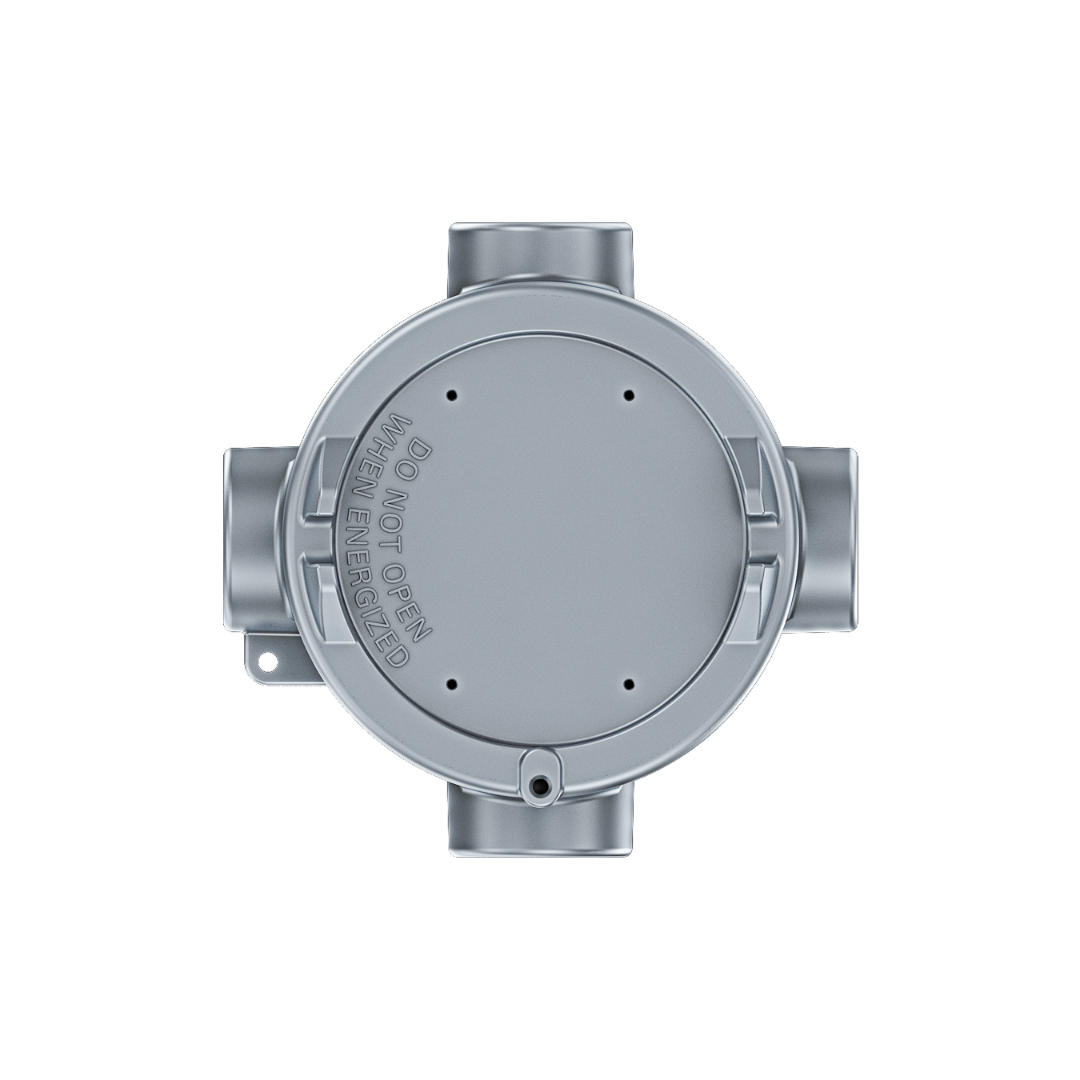

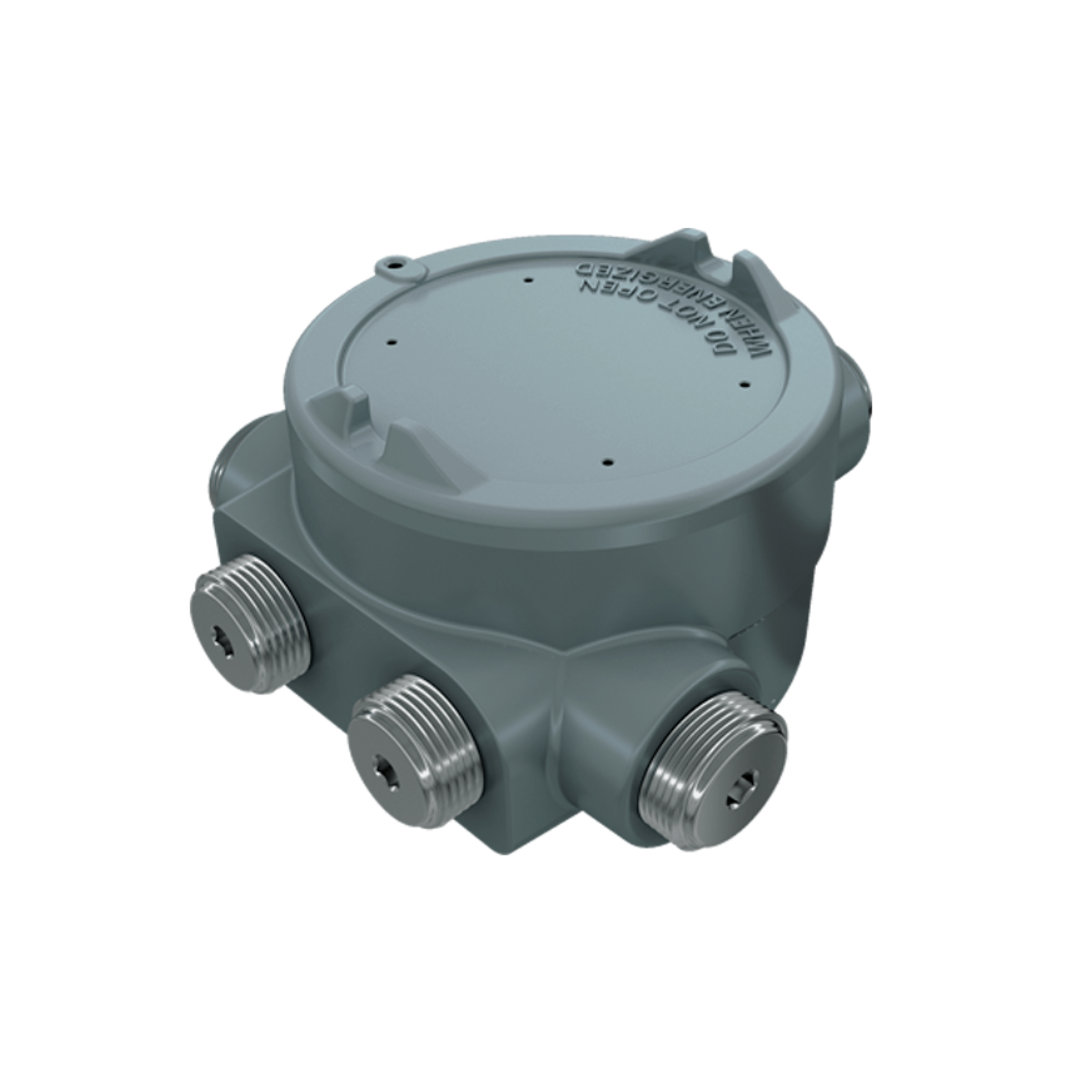

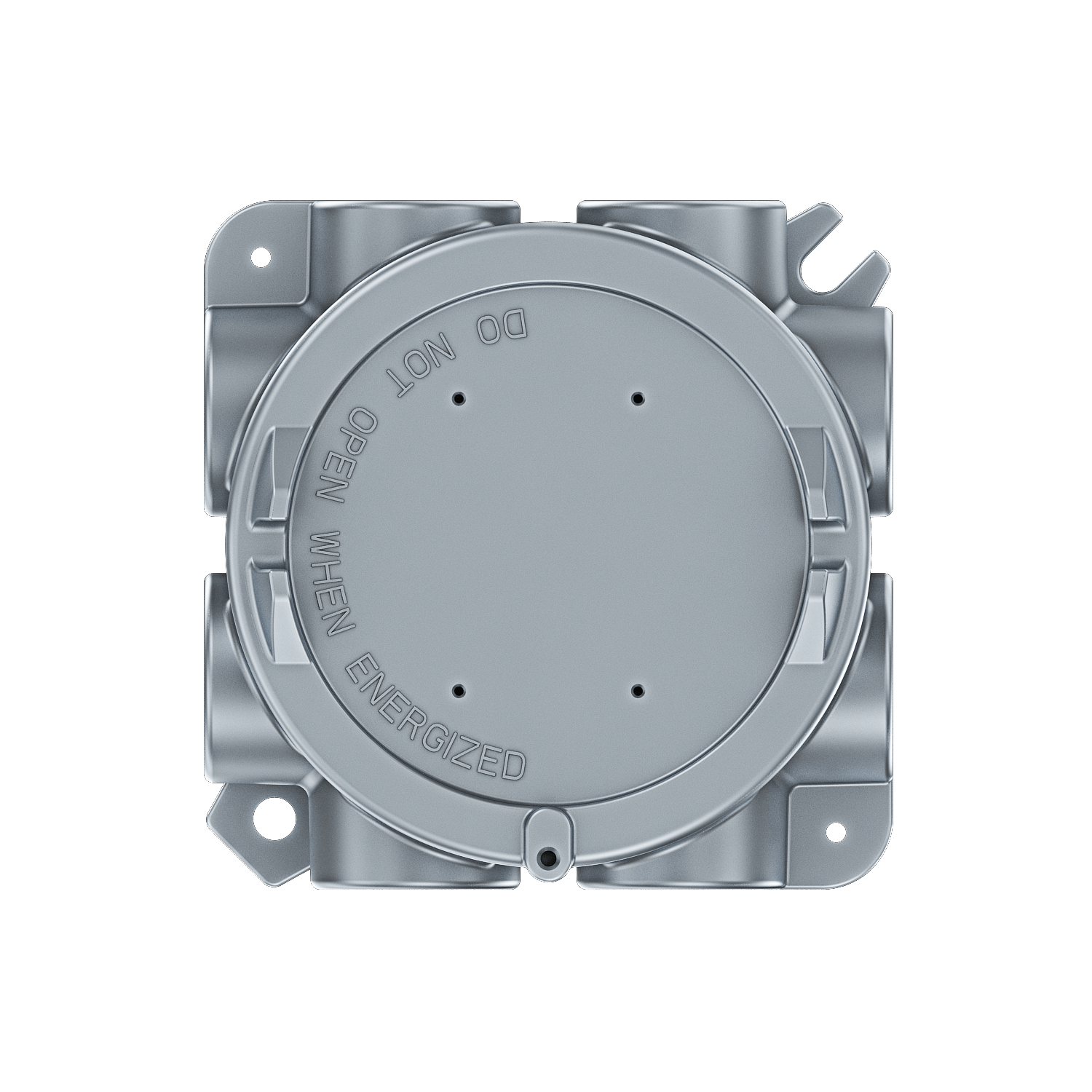

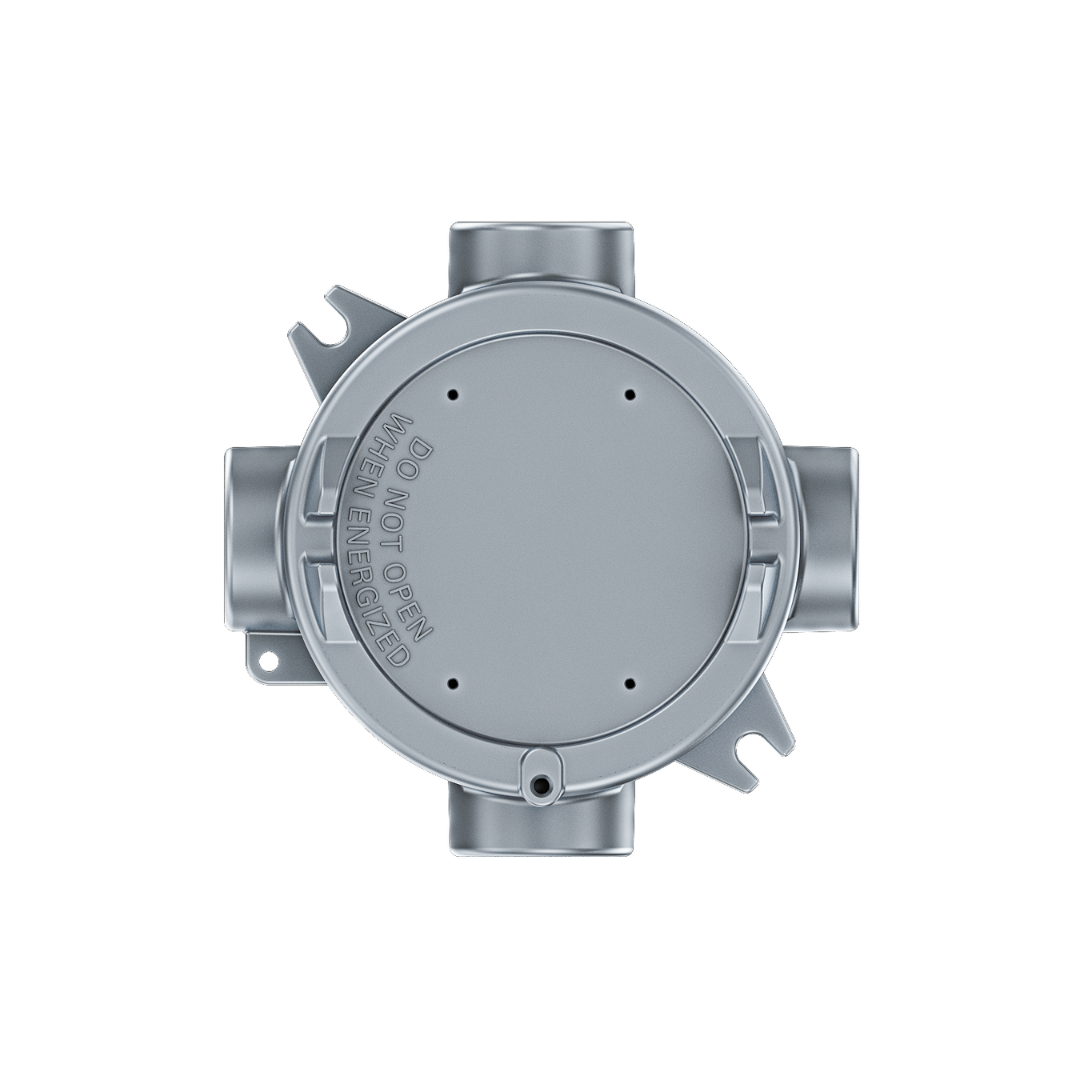

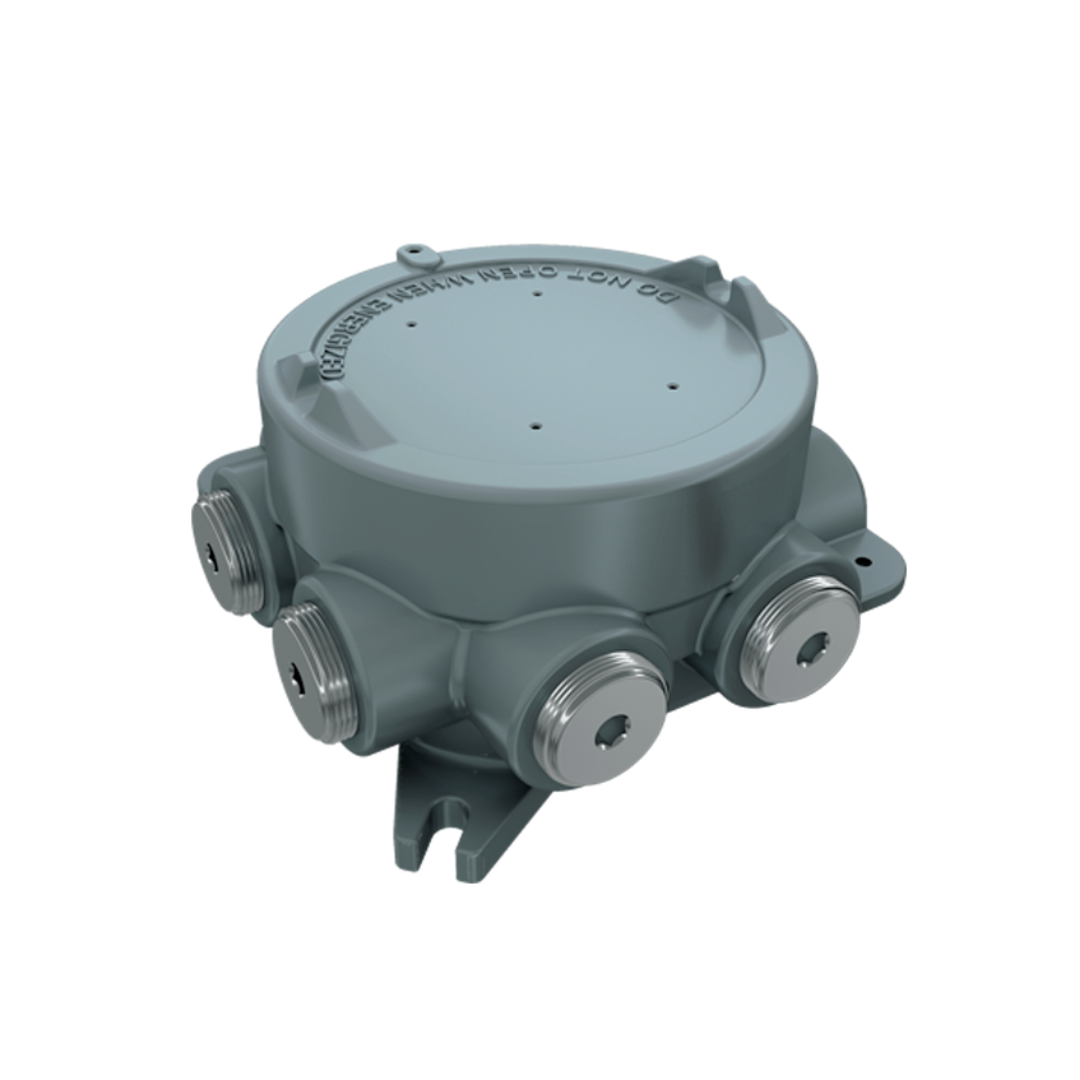

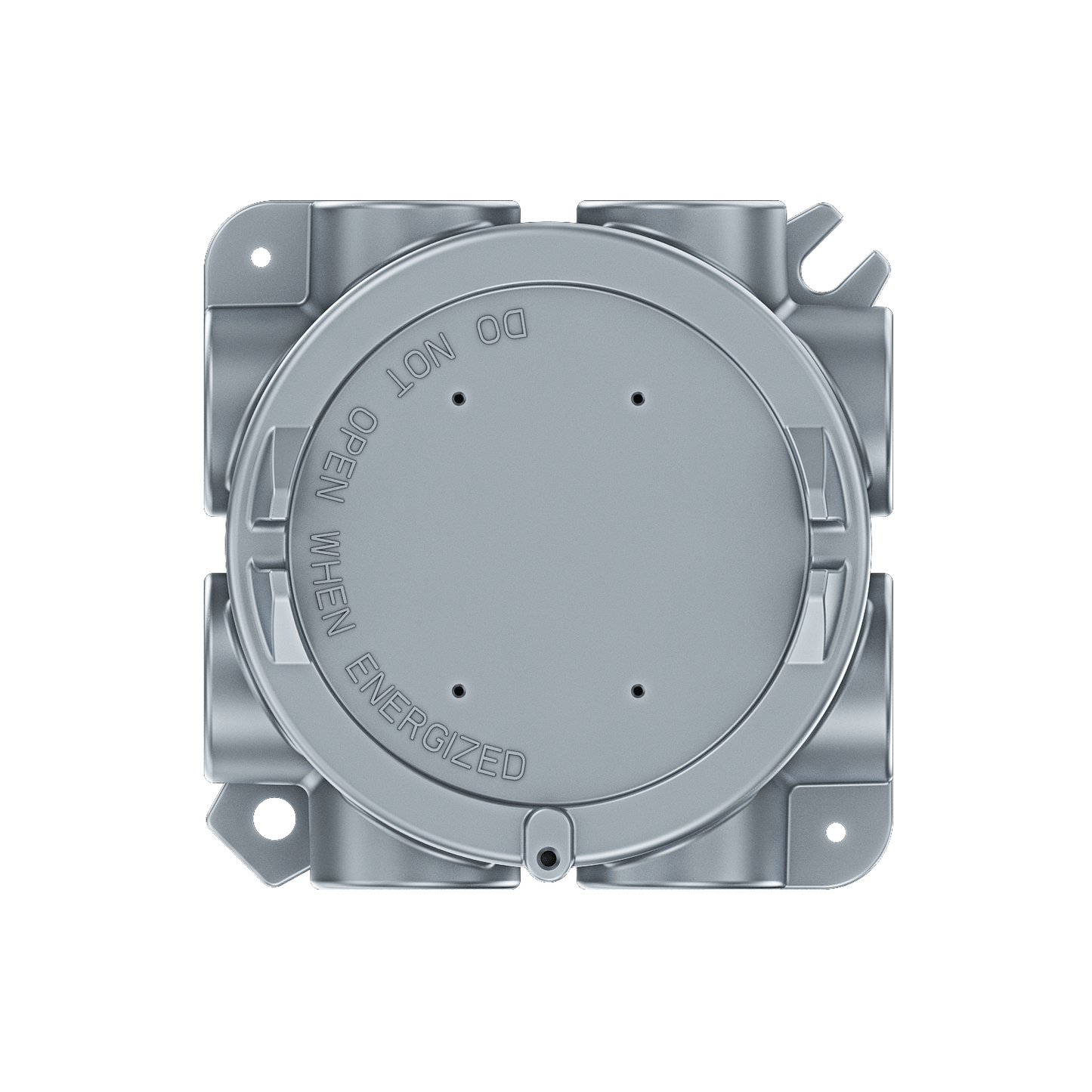

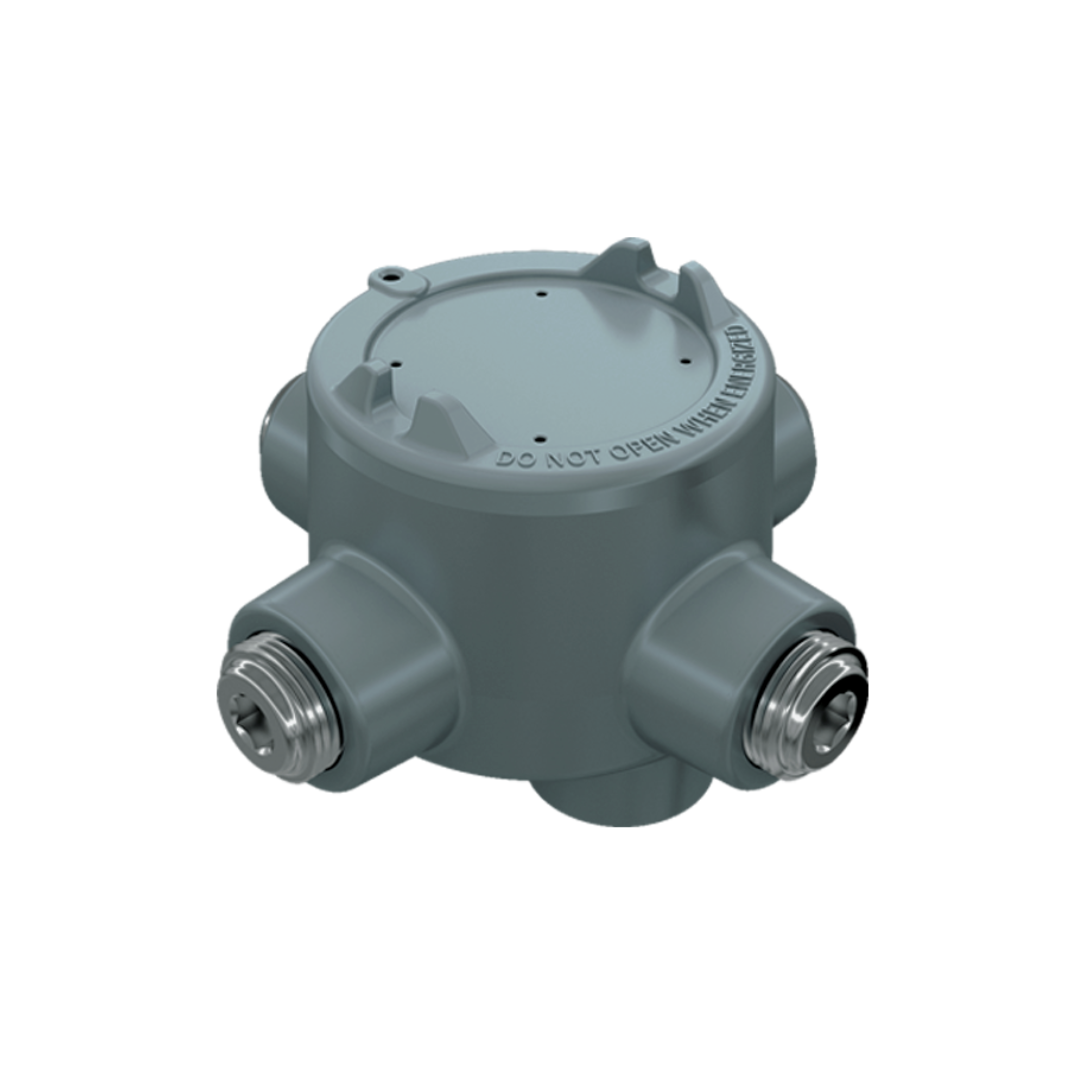

EX-HD51 series Ex Electrical Junction Box Enclosure. Used for securing electrical connections and terminating wires that are ex rated, or possibly an IS circuit. Equipped with optional terminal rail, copper earth continuity plate and are also fitted with an external earth stud, blanking plugs. Designed to meet the highest hazardous area ex rated safety standards: IECEx ATEX Hazardous Area Zone 1,2.
KEY FEATURES
CONSTRUCTION: Designed with copper-free aluminium and powder coated surface treatment. Guarantees superior corrosion resistance and durability, ensuring connections stay secure in the harshest environments.
EPL Ex RATING: Engineered to provide Ex d type flameproof protection, this enclosure safeguards against sparks and flames within Zone 1 and 2 HA areas of IECEx and ATEX.
IP RATING: IP66 rating, our enclosure offers protection against dust and water jets, ensuring your electrical connections remain dry and intact.
CUSTOMISATION: Available customisation of upto 8 holes for cable entry, On/Off switch and two-way control switch.
Collapsible content
Technical Datasheet
Shipping
Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.
We aim to process and get your delivery with you as quick as possible.
Please contact us to retrieve the estimate lead times for your order.
Guarantee
We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.
Warranty
• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
Please see our returns policy for more information.
-
Hazardous Area Certified
Certification
- IECEx TPS 20.0035X
Zone Location
IECEx
- Ex db IIC T6/T5 Gb (Except EX-HD51-KB1/*),

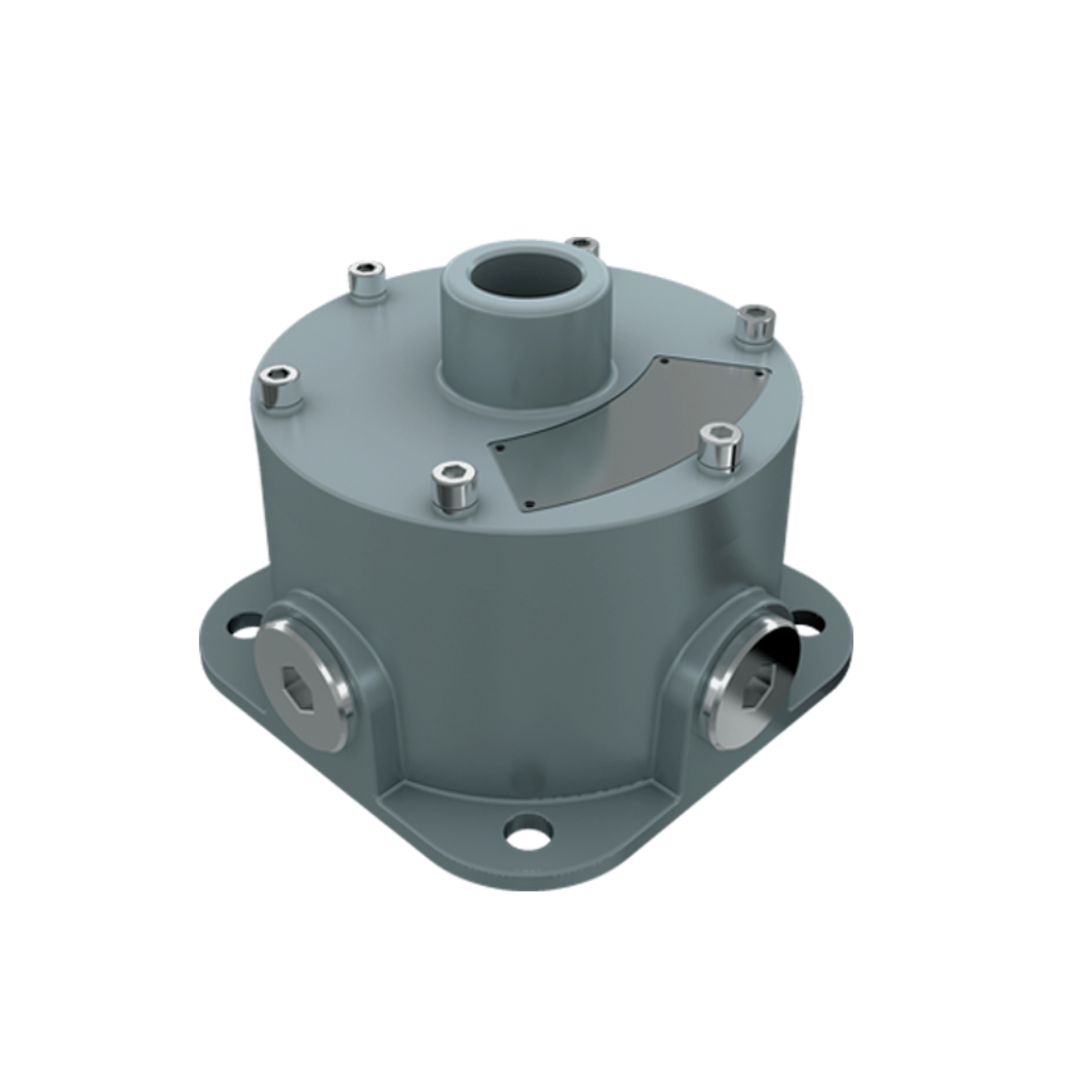

Ex db IIB+H2 T6/T5 Gb (EX-HD51-KB1/*),
Ex tb IIIC T80℃/T95℃ Db
ATEX
Ex II2 GD Ex db IIC T6/T5 Gb (Except EX-HD51-KB1/*)
Ex db IIB+H2 T6/T5 Gb (EX-HD51-KB1/*)
Ex tb IIIC T80°C/T95°C Db -
Customisable
- 1/2 NPT / M20x1.5 or 3/4 NPT / M25x1.5 Entry Holes.
- Upto 5 Entry Holes.
- Mounting Bolt Holes.
-
Electrical Specifications
- Rated Voltage Max.800VAC
- Rated Current 24A, 27A, 32A, 41A
- Ambient Temperature -60℃ to + 55℃ （-76℉ to +131℉）
- Type of Flameproof Joint Type A, B, C: Threaded joints
Type KB1: Flanged and threaded joints - Copper free aluminium enclosure.
- The degree of protection is IP66
