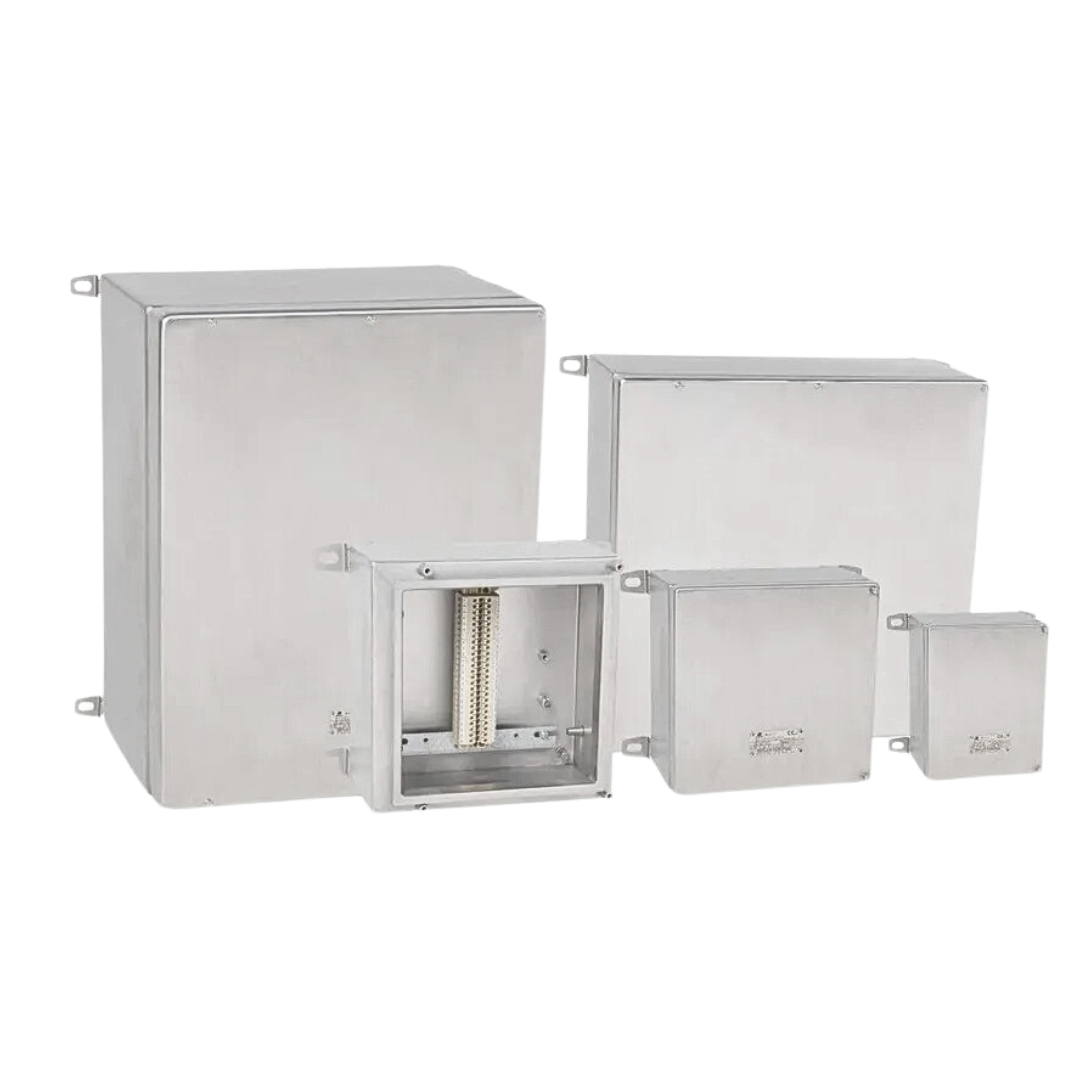

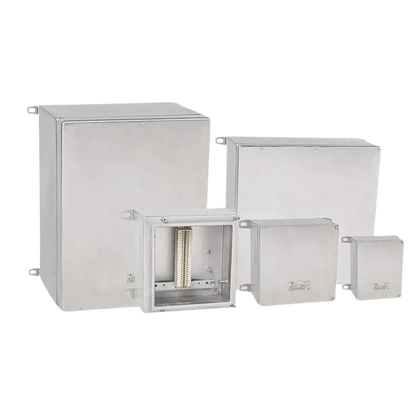

Ex Stainless Steel Terminal Box Enclosure - IECEx ATEX Hazardous Area Zone 0,1,2

Ex Stainless Steel Terminal Box Enclosure - IECEx ATEX Hazardous Area Zone 0,1,2

£33.00 GBP
£33.00 GBP
Sale Pre order now
GST and Shipping is calculated at checkout.

55 in Stock Ready to Ship

BXJ-S series Ex Stainless Steel Electrical Junction Box Enclosure. Used for securing electrical connections and terminating wires that are ex rated, or possibly an IS circuit. Equipped with optional terminal rail, copper earth continuity plate and are also fitted with an external earth stud, blanking plugs. Designed to meet the highest hazardous area ex rated safety standards: IECEx ATEX Hazardous Area Zone 0,1,2.

KEY FEATURES

CONSTRUCTION: Designed with Stainless Steel. Guarantees superior corrosion resistance and durability, mechanical impact resistance. ensuring connections stay secure in the harshest environments.

EPL Ex RATING: Engineered to provide E: Increased safety "eb", Intrinsic safety "ia", Equipment dust ignition protection by enclosure "tb". This enclosure safeguards within Zone 0,1,2 HA areas of IECEx and ATEX.

CUSTOMISATION: Available customisation of stainless steel grade, rated current, terminal type, component type, copper bar size, overall dimensions.

SKU: BXJ-S

View full details

Technical Data

Click Here to download datasheet

Shipping

Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.


We aim to process and get your delivery with you as quick as possible.

Please contact us to retrieve the estimate lead times for your order.

Guarantee

We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.

Warranty

• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.

Please see our returns policy for more information.

  • Hazardous Area Certified

    Certification

    • IECEX: IECEx CQM 21.0022X
    • ATEX: TPS 21 ATEX 089761 0020X

    Zone Location

    IECEx:

    • Ex eb IIC T6...T3 Gb
    • Ex ia IIC T6 Ga
    • Ex tb IIIC T80℃...T130℃ Db

    ATEX:

    • Ex II 2 G Ex e IIC T6...T3 Gb
    • Ex II 1 G Ex ia IIC T6 Ga
    • Ex II 2 D Ex tb IIIC T80℃..T1 30℃ Db IP66

  • Electrical Specifications

    • Stainless Steel - 304, 316, 316L
    • Rated Voltage: Max.1000V AC/Max.1500V DC/Max.1000A
    • Rated Current: 5A~1000A
    • IP66

  • Customisation

    We can help facilitate fabrication build of your enclosure.

    • DIN rails.
    • Cable glands and blanking plugs.
    • Terminals: WDU, Wago, UK, CTS, WFF, SAKK.
    • Components: MTL series, Pepperl and Fuchs series, Endress & Hauser series, Bently series, Yokowaga series, Rosemount series.
    • Copper bar sizes.

Ex Electrical Manufacturing & Fabrication

We offer after sales support on a wide range of our products including:

  • Design & CAD Drawing
  • Product and Component Selection
  • Bill of materials
  • Engineered Fabrication
  • Factory Acceptance Testing (FAT)
  • Professional packaging and delivery
  • Installation
  • Calibration
  • Maintenance & Repair

Need help with custom electrical design, fabrication and install ?

  • Design

    Utilise our skilful resources with ATEX / IECEx workshop to bring your ex electrical design to life.

  • Fabrication

    From pre-approved designs to custom solution ATEX / IECEx control stations, motor starters, distribution panels. We have you covered.

  • Install & Maintain

    With full turnkey solutions we have capability to install, commission and maintain your systems.

Pre & Post Sales Support

  • We offer technical after sales support to ensure our clients are backed by our team.
  • Whether you need support with custom project fabrication, calibration, on-site installation.
  • We are here to bring a partnered business relationship with you.
  • Our fulfilment warehouse has stocking capabilities for small or large projects.
