Ex Emergency Light Backup Battery - IECEx ATEX Hazardous Area Zone 1,2

Ex Emergency Light Backup Battery - IECEx ATEX Hazardous Area Zone 1,2

£497.00 GBP
£497.00 GBP
Sale Pre order now
GST and Shipping is calculated at checkout.

6 in Stock Ready to Ship

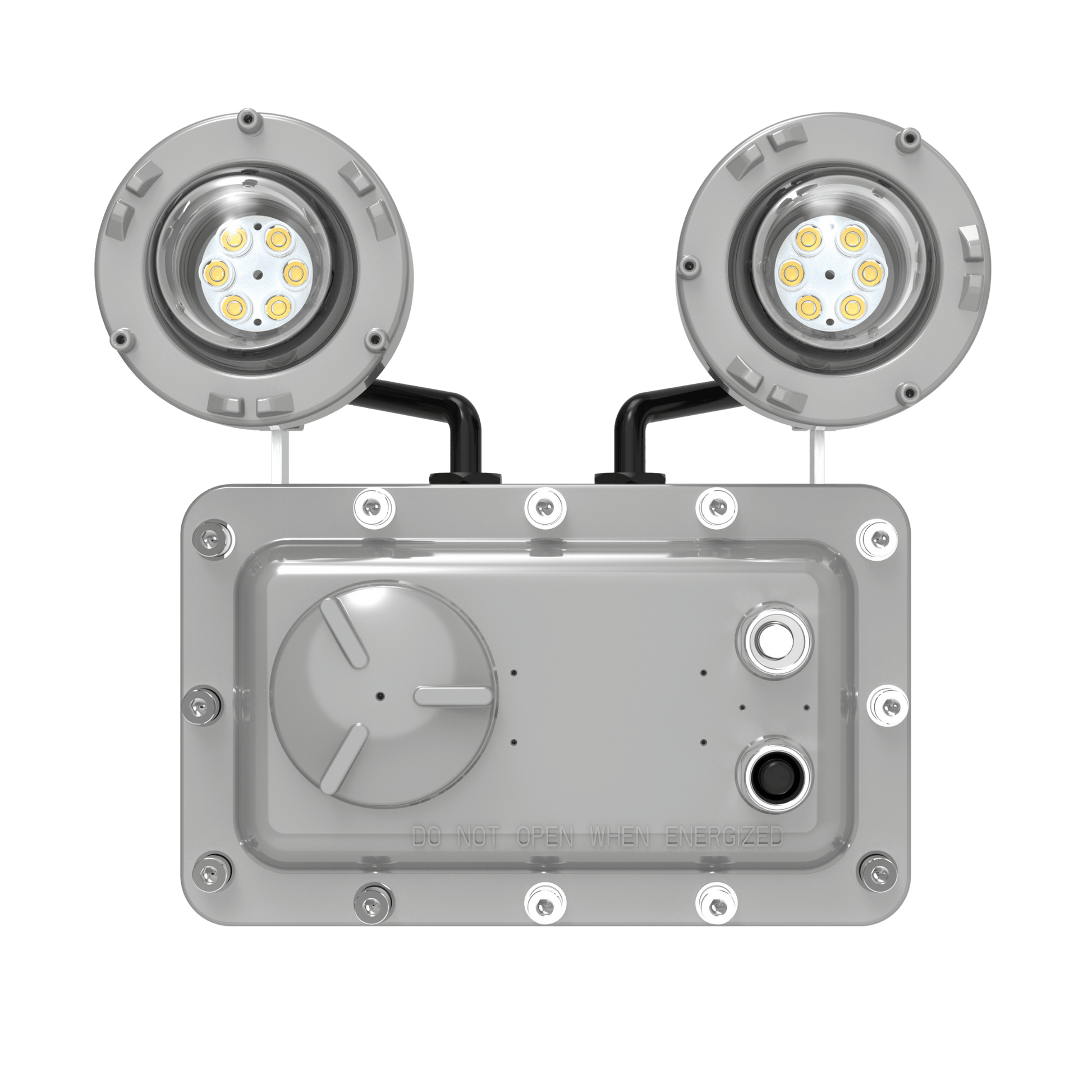

The ES02-Series Hazardous Area LED Exit Emergency Lights, sets the stand in Ex rated explosion-proof lighting. Engineered to endure and perform in the relentless challenges of the industrial environments with moisture, dirt, dust, corrosion, and vibration.

Harnessing equipment protection levels of Flameproof Ex "db", Protection by Enclosure Ex "tb". These LED lights are perfectly suited for the most challenging harsh atmospheric conditions found in industries such as oil and gas, marine, petrochemical, chemical, petroleum, spray booths, and breweries. Covered by the IECEx and ATEX certification, brings a compliant solution to hazardous areas.

SKU Model: EX-12W-ES02D1

View full details

Technical Datasheet

Click here to see the datasheet

Shipping

Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.


We aim to process and get your delivery with you as quick as possible.

Please contact us to retrieve the estimate lead times for your order.

Guarantee

We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.

Warranty

• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.

Please see our returns policy for more information.

  • Hazardous Area Certified

    Certification

    • IECEx CQM 21.0029X

    Zones

    • Ex db eb mb q IIC T5/T6 Gb
    • Ex tb IIIC 80°C/95°C Db IP66

  • application industry ex lighting

    Features

    • 3 hours back up emergency battery
    • Lumens: 1080 lm
    • Wattage: 10W
    • Input voltage - AC100-277V
    • Low working wattage for energy saving.
    • Two high-lumen spot lights can be adjusted in
      horizontal and vertical directions.
    • Ingress protection rating IP66
    • Provided with 3/4" NPT or M25 conduit hubs.

  • Construction

    • Housing: Copper-Free Aluminium
    • Diffuser: Tempered Glass
    • Hardware: Stainless Steel
    • Mounting for Ceiling, Walls, Hooks, Poles, Arms, Stanchions

Case Studies

  • lighting design image 3

    Propane Transportation Facility

    Propane transportation facility lighting design made by our lighting engineers. This install we used *3 40W Ex rated Zone 1 LED Jelly Jar lights, with mounted height of 4m. The propane transport area, measuring 2.4x12m achieved an average illumination of 12.9 foot-candles (fc).

  • Chemical Plant

    Chemical plant lighting photometric design made by our lighting engineers. This install we used *4 150W Ex rated Zone 1 LED Jelly Jar lights, with mounted height of 4.5m. The sub level grading height was 3m, and achieved an average illumination of 70fc while the main level ceiling was 4.2m with an illumination average of 34.5 fc.

  • lighting design image 1

    Paint Booth

    Spray paint booth lighting photometric design made by our lighting engineers. This install we used *9 60W Ex rated Zone 1 LED Linear Lights, used on a 12x2.4m paint booth with 2.7m ceilings. The fixtures were mounted on the wall and provided a maximum of 290 foot candles with a uniformity of 1.22-3.96.
