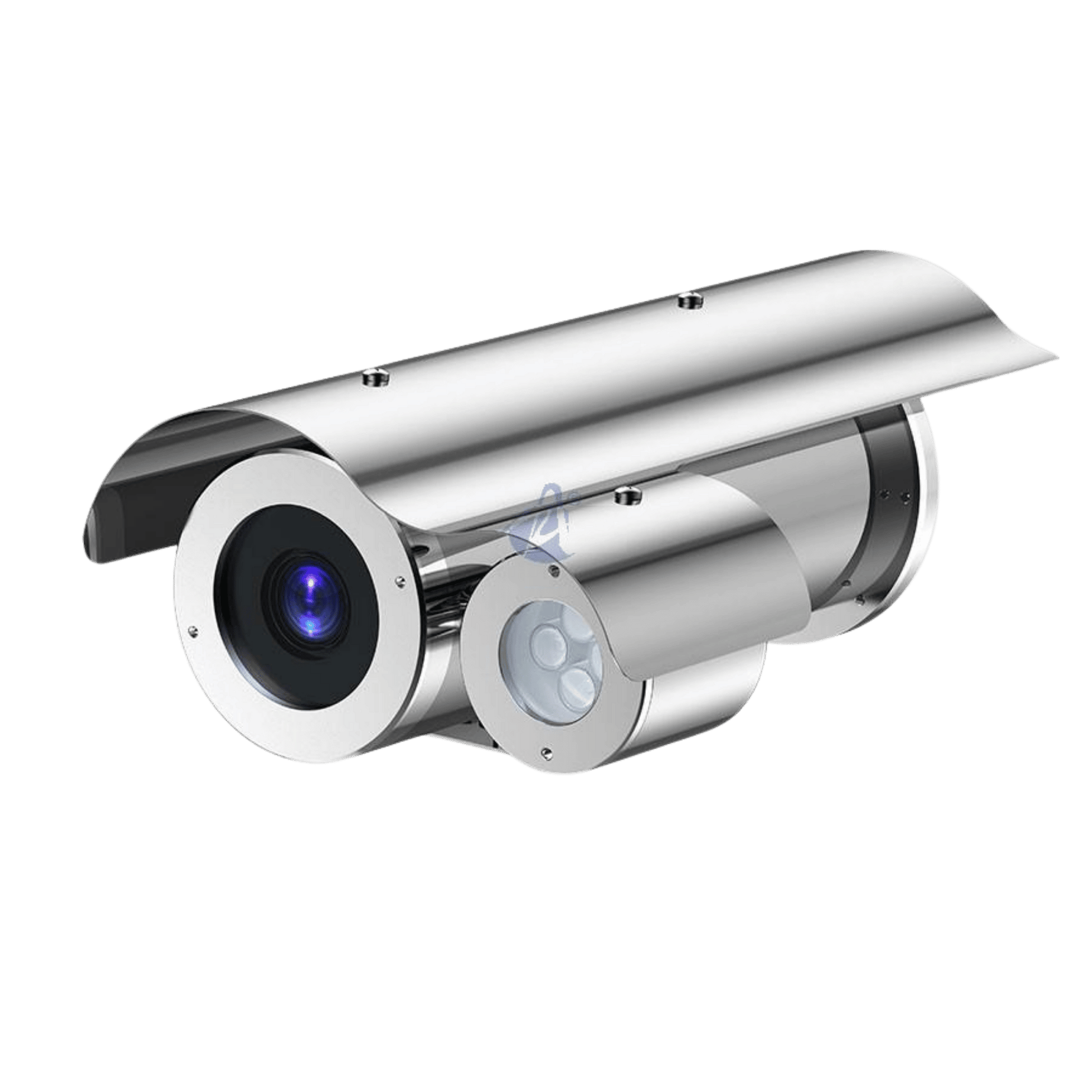

Explosion-Proof IR Fixed-Focal Network Camera – Certified for Hazardous Areas
Our IECEx and ATEX-certified Ex IR Fixed-Focal Network Camera is built for high-risk environments, including Gas Zone 1, Zone 2, and Dust Zone 21, 22. Featuring a stainless steel 304/316L enclosure, IP68-rated protection, and hydrofluoric acid-resistant tempered glass, this camera delivers unmatched durability and reliability in extreme industrial settings.
🔹 8MP Ultra HD Imaging – 1/2.8" CMOS sensor with motorized zoom & auto-focus
🔹 Powerful Infrared Night Vision – High-performance IR lights for clear visibility in low-light
🔹 Intelligent Features – Auto temperature adjustment, window defroster, and high-precision wiper
🔹 Versatile Power & Mounting Options – Supports AC100-240V, AC24V, DC24V, or PoE++
🔹 Rugged & Weatherproof – IP68-rated for dust, water, and extreme conditions
This explosion-proof fixed-focal network camera is ideal for oil & gas, chemical plants, and hazardous industrial zones.
Collapsible content
Technical Datasheet
Shipping
Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.
We aim to process and get your delivery with you as quick as possible.
Please contact us to retrieve the estimate lead times for your order.
Guarantee
We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.
Warranty
• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
Please see our returns policy for more information.
Compatibility Information
ONVIF
Compatibility:
The
CZ1035D Explosion Proof Fixed Camera is ONVIF compliant, allowing seamless
integration with a wide range of third-party VMS platforms and NVRs. This
ensures the camera will meet the customer’s requirement for interoperability
and standardised communication protocols.
Compatibility
with DAHUA Recorder:
Yes, the
camera will work with a DAHUA recorder. Since the camera uses standard ONVIF
protocol, it can integrate with DAHUA (and other major brands such as
Milestone, Genetec, Hikvision, etc.) for both live viewing and recording
functionality.
Network Connection Types
NVR (Network Video Recorder) has a VGA output port that you can use to connect a monitor directly, so you can view live/recorded video locally from the NVR. It’s only for display, not for camera data transmission.
The VGA connection is completely separate from the fibre network. VGA is just video output from the NVR to a monitor, so it has nothing to do with fibre connectivity or IP network traffic.
The cameras (or remote sites) are connected via fibre optic cable into a network switch. Fibre is used for long-distance, high-bandwidth transmission.
The switch is then connected to the NVR via Ethernet (copper or fibre depending on setup). This is how the NVR receives the camera video streams over the IP network.
In Short:
VGA = monitor output from NVR (local viewing).
Fibre = carries camera network data to the switch.
Switch = distributes network traffic.
NVR = records/controls IP cameras and sends video out to the monitor via VGA (or HDMI)
-
Hazardous Area Certified
Certification
- IECEx PRE 20.0042X
Equipment Protection Level
- Ex db op is IIC T6 Gb (without optical fibre)
- Ex db op is op pr IIC T6 Gb (with optical fibre)
- Ex tb op is IIIC T80°C Db (without optical fibre)
- Ex tb op is op pr IIIC T80°C Db (with optical fibre)
-
Main Features
- Stainless steel 304 or 316L enclosure
- Surface optional electro-polished or painting
- Weather Proof IP68(2m/2h)
- Wide voltage input: AC100-240V or AC24V or DC24V or PoE++
- Strong tempered glass
- Intelligent window defroster design
- Infrared light for night vision
- Wiper to keep window clean
- Auto temperature adjust kit for aggressive area
- Wall, pole, ceiling or corner mounted way
-
Specifications
- Image Sensor 1/2.8 inch STARVIS™ CMOS
- Effective Pixels 2 MP,1920×1080
- Minimum Illumination
Color：0.05Lux/F1.6
B/W：0.005Lux/F1.6 - Noise Reduction Ultra DNR (2D/3D)
- White Balance Auto, ATW, Indoor, Outdoor, Manual
- Gain Control Auto / Manual
- S/N Ratio ≥55dB
- Digital Zoom 16X
- Day/Night Auto(ICR) / Color / B/W
- Focus Control Auto/Manual
