Ex Lighting Distribution Control Station - IECEx ATEX Hazardous Area Zone 1,2

Ex Lighting Distribution Control Station - IECEx ATEX Hazardous Area Zone 1,2

£0.00 GBP
£0.00 GBP
Sale Pre order now
GST and Shipping is calculated at checkout.

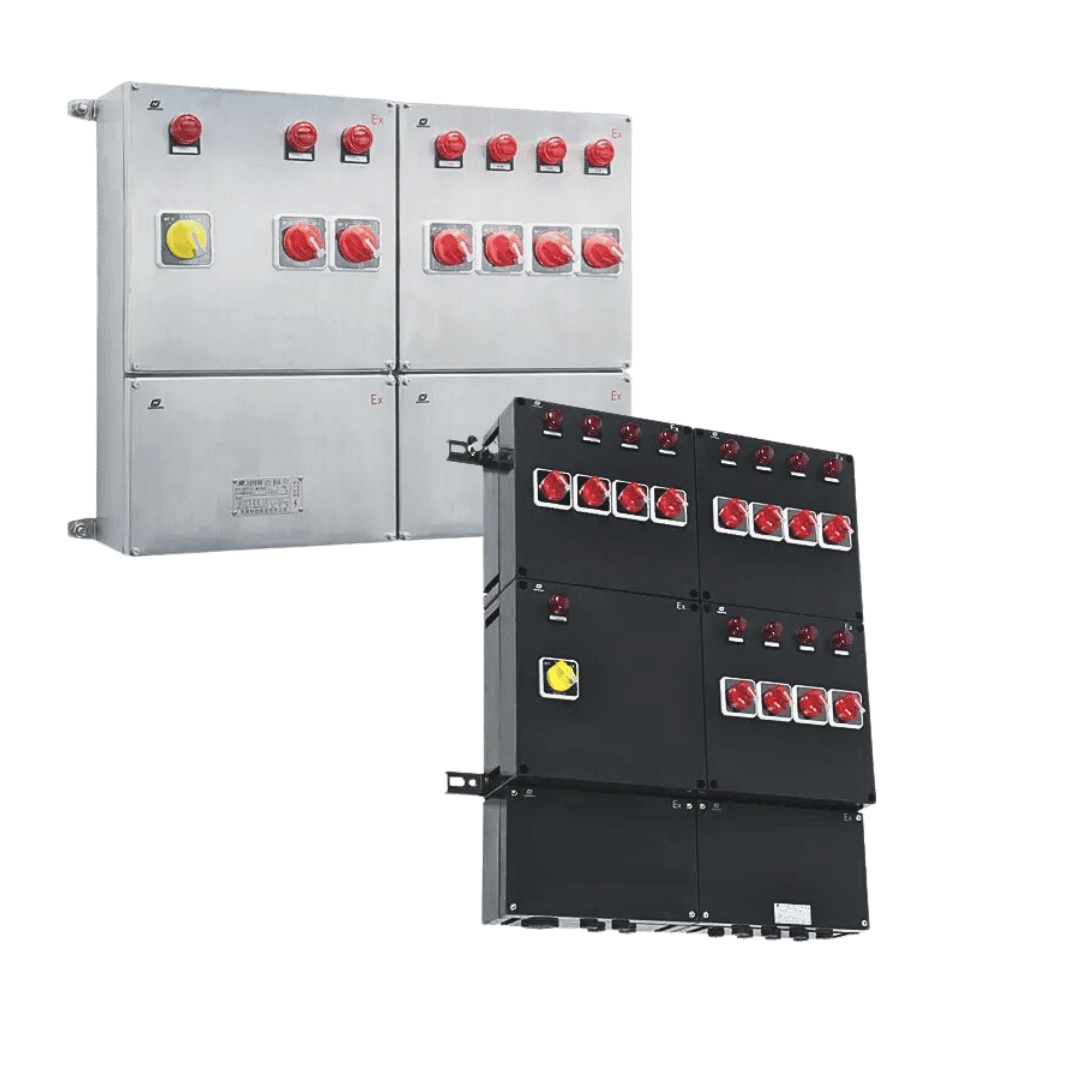

The BXM(D)8050 Lighting Distribution Control Station series offers excellent performance design and meets the stricter requirements of hazardous areas. Made from GRP( Glass Fibre-reinforced polyester resin) or SS (Stainless Steel). This enables UV and thermal stability, providing mechanical impact resistance and excellent resistance when exposed either to salt mist or to marine and other damp environments. Perfect for industrial use.

Compliant to IECEx and ATEX according to EN 60079. Usually installed in industrial plants where there is a risk of explosion and fire, classified
as Zone Gas 1, 2 and Dust 21, 22; with custom configuration to be used as lighting illumination central distribution control station.

SKU Model: BXM(D)8050

View full details

Technical Datasheet

Click here to see GRP Version Datasheet

Click here to see Stainless Steel Version Datasheet

Shipping

Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.


We aim to process and get your delivery with you as quick as possible.

Please contact us to retrieve the estimate lead times for your order.

Guarantee

We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.

Warranty

• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.

Please see our returns policy for more information.

  • Hazardous Area Certified

    Certification

    • GRP - IECEx CQM 14.0033X
    • GRP - EPT 15 ATEX 2265
    • SS - IECEx CQM 22.0002X
    • SS - TUV CY 22 ATEX 0206669X

    Protection level marking:

    IECEx

    • GRP - Ex d e IIC T5 or T4 Gb
    • GRP - Ex tb IIIC T80°C Db IP66
    • SS - Ex db eb IIC T5 or T4 Gb
    • SS - Ex tb IIIC T80°C Db

    ATEX

    • GRP - Ex II 2 G Ex d e IIC T5 or T4 Gb
    • GRP - Ex II 2 D Ex tb IIIC T80°C Db IP66
    • SS - Ex II 2 G Ex db eb IIC T5 or T4 Gb
    • SS - Ex II 2 D Ex tb IIIC T80°C Db

  • Configurations

    • Number of branch circuits
    • Branch current
    • With main switch (optional)
    • Main switch current
    • Cable entry size and position
    • Photo switch
    • AC contactor
    • Thermal relay
    • Mounting type
    • Rainproof canopy (optional)


    Entry size, entry direction, enclosure material, etc. on request.

  • Construction

    • Rated voltage: Max. 690V AC 50/60Hz
    • Rated current: Max. 100A
    • Branch current: 1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A
    • IP66

Ex Electrical Manufacturing & Fabrication

We offer after sales support on a wide range of our products including:

  • Design & CAD Drawing
  • Product and Component Selection
  • Bill of materials
  • Engineered Fabrication
  • Factory Acceptance Testing (FAT)
  • Professional packaging and delivery
  • Installation
  • Calibration
  • Maintenance & Repair

Pre & Post Sales Support

  • We offer technical after sales support to ensure our clients are backed by our team.
  • Whether you need support with custom project fabrication, calibration, on-site installation.
  • We are here to bring a partnered business relationship with you.
  • Our fulfilment warehouse has stocking capabilities for small or large projects.
