Ex Location Signal Tower Alarm Light - IECEx ATEX Hazardous Area Zone 2
Ex Location Signal Tower Alarm Light - IECEx ATEX Hazardous Area Zone 2
Couldn't load pickup availability

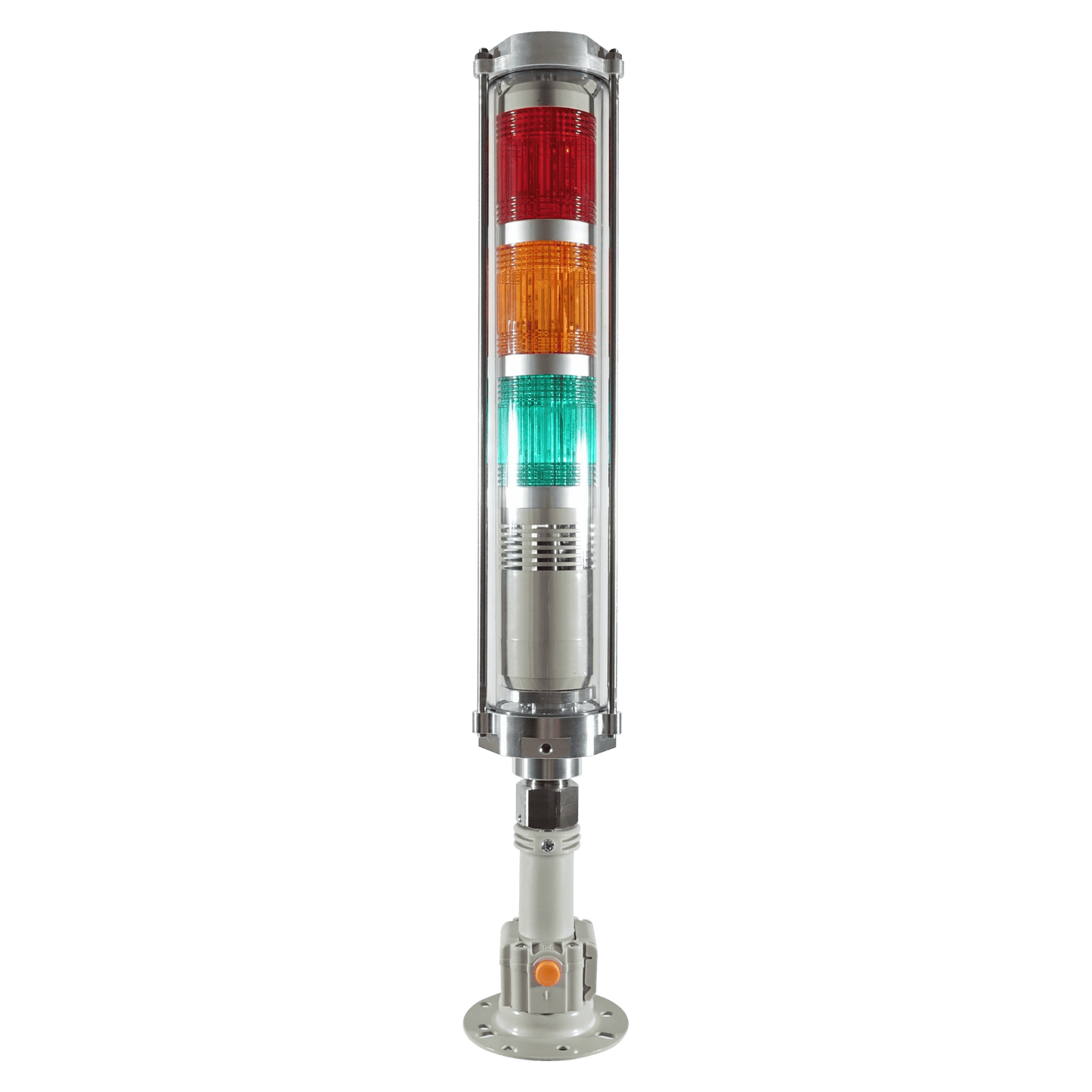

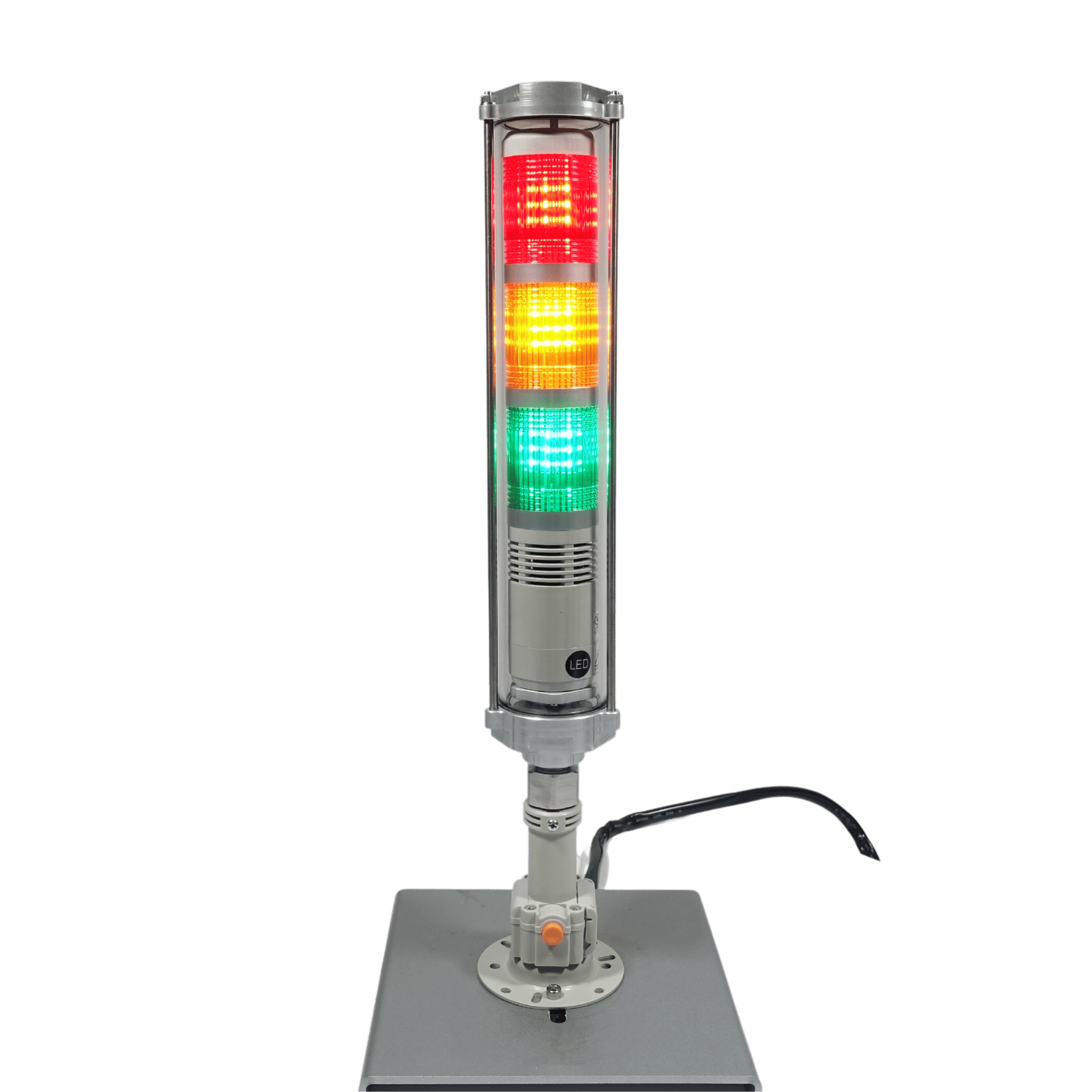

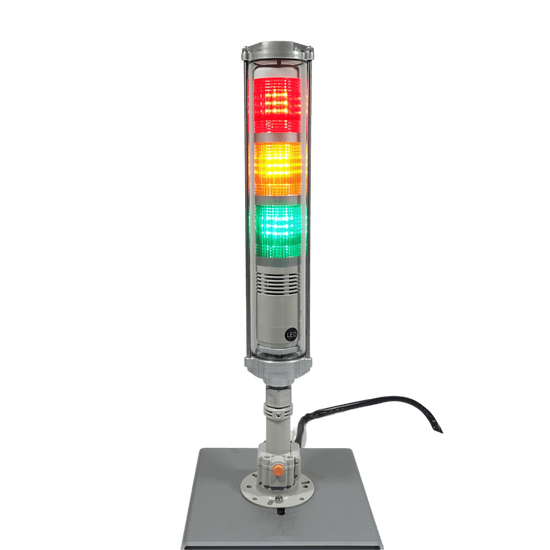

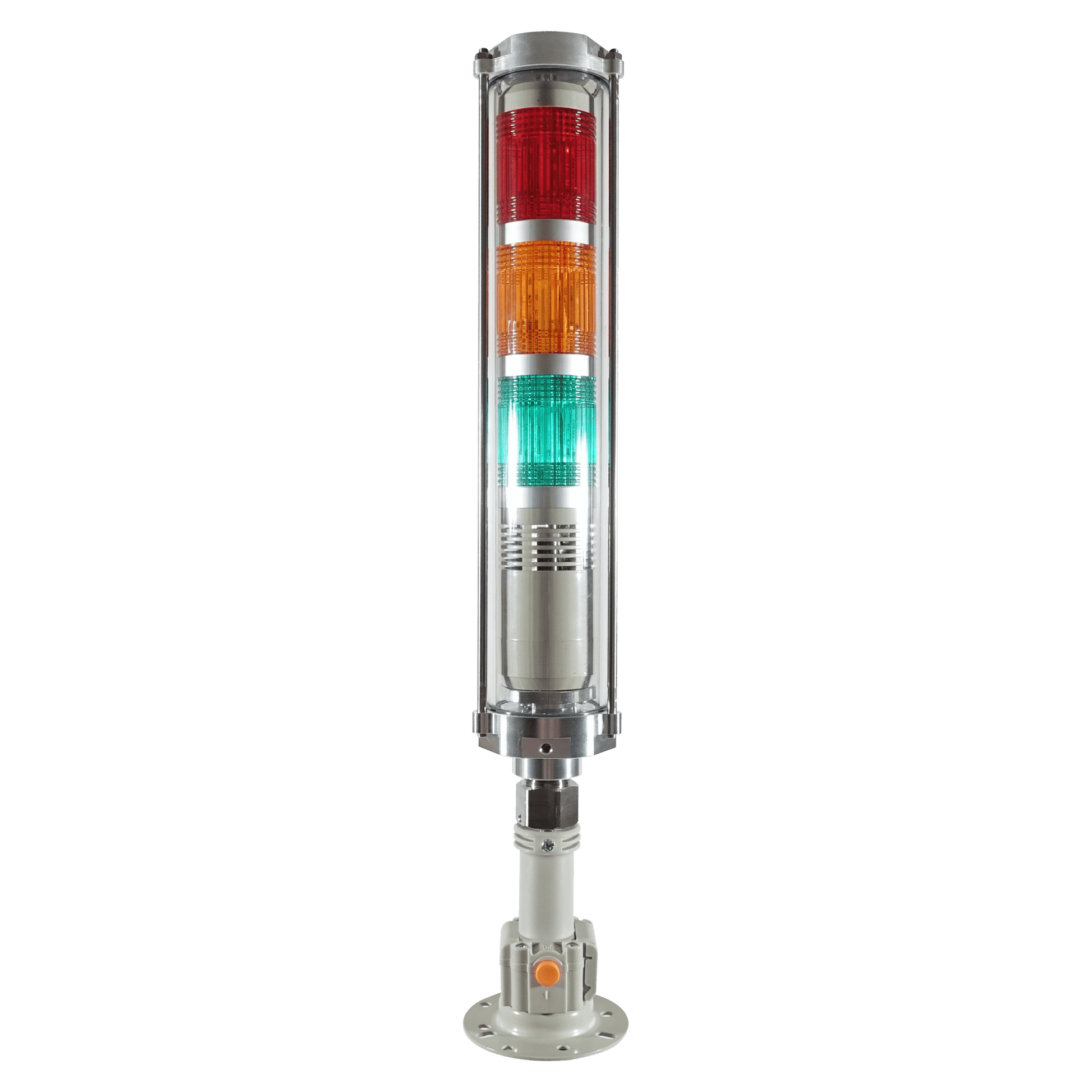

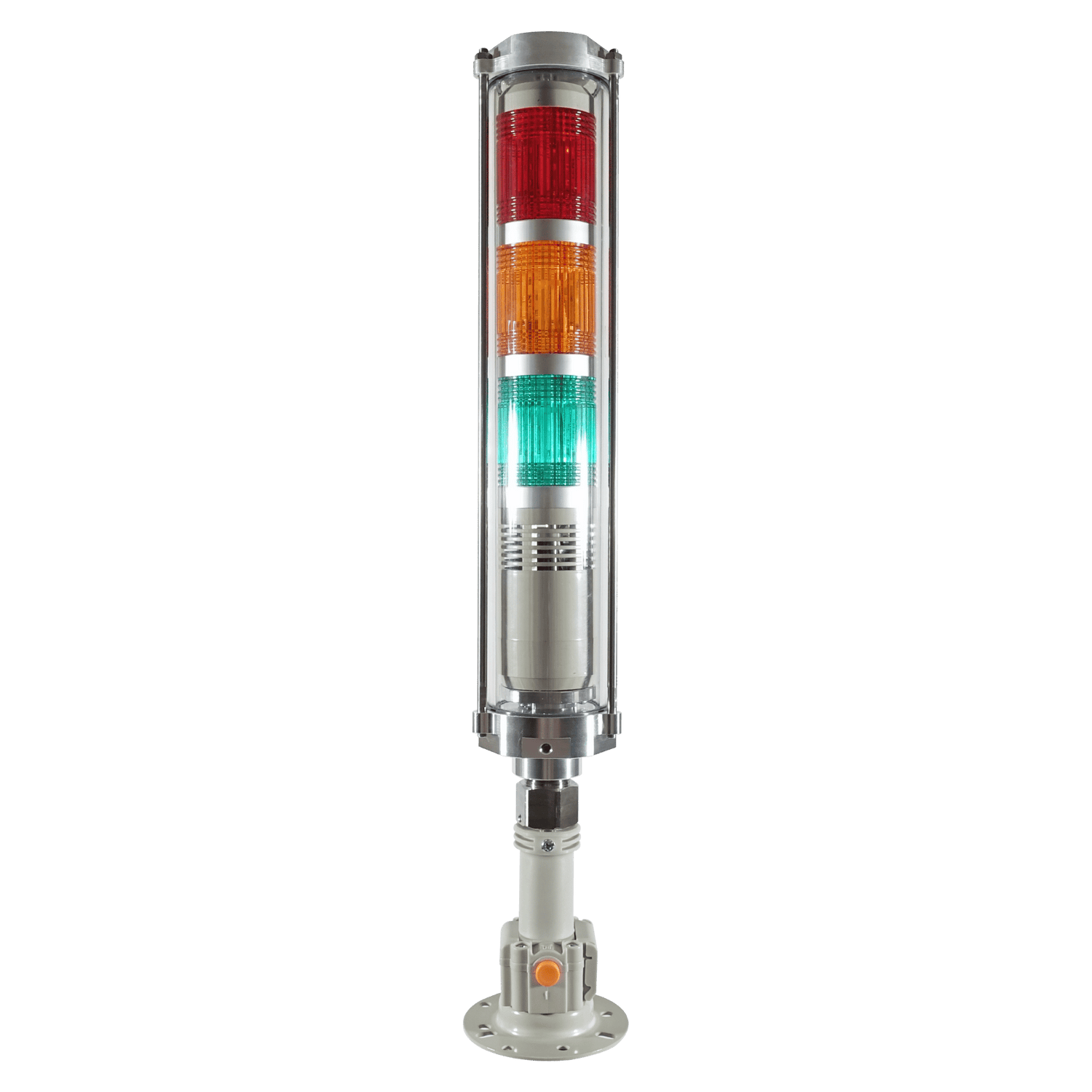

Enhance safety in hazardous areas with our Explosion-Proof LED Tower Light, specifically designed for IECEx and ATEX Zone 2 (gas) and Zone 21 (dust) applications. Built to meet strict Equipment Protection Level (EPL) 'ec' and 'tb', this robust tower light offers reliable visual and audible signaling in environments prone to explosive gas and dust.
-
Certified Explosion Protection: Ex ec IIC T4 Gc, Ex tb IIIC T80°C Db (-20°C ≤ Ta ≤ +40°C)
-
Durable Construction: A356.2 aluminum alloy body and high-impact PC tube
-
Wide Voltage Range: 12V / 24V DC and 110V / 220V AC for versatile installation
-
IP67 / NEMA 6 Rated: Exceptional protection against water, dust, and harsh environmental conditions
-
Audible Alert: 80dB buzzer ensures clear sound signaling, tested at 1 meter away
-
Multi-Color Options: Red, Orange, Green, Blue, and White LED indicators
Collapsible content
Technical Datasheet
Shipping
We aim to process and get your delivery with you as quick as possible -
Shipping rates and delivery times are calculated at checkout.
Guarantee
We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.
Warranty
• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
Please see our returns policy for more information.
-
Hazardous Area Certified
IECEx Certification
- Ex ec IIC T4 Gc
- Ex tb IIIC T80°C Db
ATEX Certification
- II 3 G Ex ec IIC T4 Gc
- II 2 D Ex tb IIIC T80°C Db
-
FEATURES
- Available with or without terminal box and buzzer.
- Single-color light can be used as a warning light, eye-washer indicator.
- Configurable flashing / non flashing / various colours / voltage input
- Mounting Bracket Type
W90=Wall Mount
C90=Ceiling Mount
S=Pole Stand
F=Foldable Mount
T=Pole Mount
-
FEATURES
Rated Voltage: 12V / 24V DC ; 12V / 24V / 110V / 220V AC
Ambient Temperature: -20°C ~ +40°C
Colour: Red, Orange, Green, Blue, White
Frequency: 50 / 60 Hz (AC)
Degree of Protection: IP67 / NEMA 6
Material: Aluminum Alloy(Body) and PC(Lens)Buzzer Volume: 80 dB
Introduction Video
Applications
-
Oil & Gas
Refineries, drilling platforms, and gas processing plants where flammable gases are present.
-
Chemical & Petrochemical Plants
Areas with volatile chemical storage or processing operations.
-
Manufacturing
Cleanrooms and other controlled environments where safety signaling is critical.
Customisable LED Segments: Available with 1 to 5 stackable LED sections in red, orange, green, blue, white. The sequence and combination can be tailored to specific operations.
Audible Alerts: Equipped with an 80 dB buzzer, ensuring audible warnings even in high-noise environments.
Flexible Configurations: Options include versions with or without a terminal box and buzzer, as well as flashing or steady light modes.
Rugged Construction: Features IP67/NEMA 6 protection, making it dust-tight and water-resistant.
Wide Voltage Compatibility: Supports 12V/24V DC and 110V/220V AC inputs.
Benefits
Provides clear visual and audible alerts, facilitating prompt responses to operational changes or emergencies.
Built to withstand harsh conditions, reducing maintenance needs and downtime.
Utilizes LED technology, offering long service life and low power consumption.
: Meets international safety standards, ensuring suitability for global operations.
