Ex GRP Terminal Box Enclosure - IECEx ATEX Hazardous Area Zone 0,1,2

Ex GRP Terminal Box Enclosure - IECEx ATEX Hazardous Area Zone 0,1,2

£79.00 GBP
£79.00 GBP
Sale Pre order now
GST and Shipping is calculated at checkout.

55 in Stock Ready to Ship

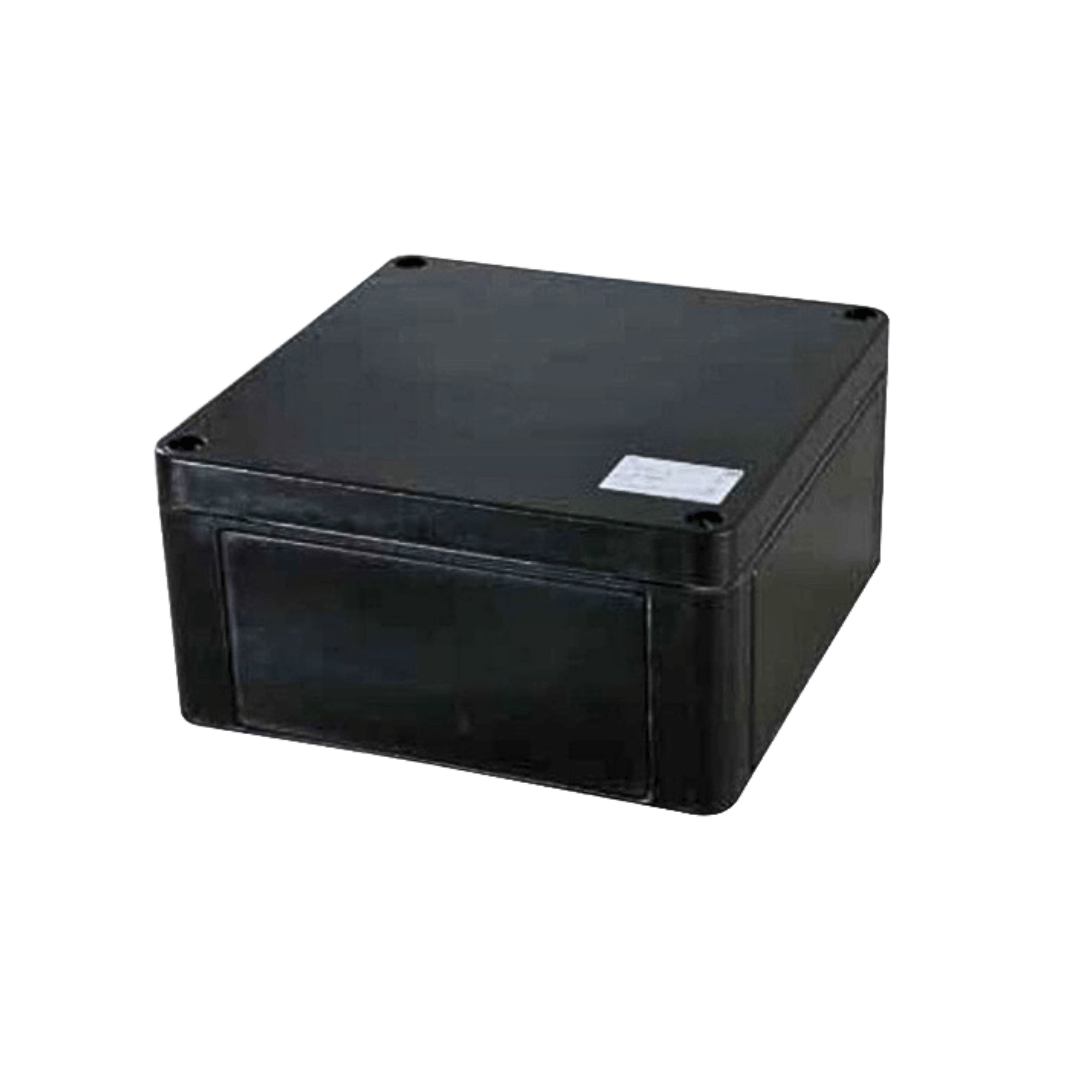

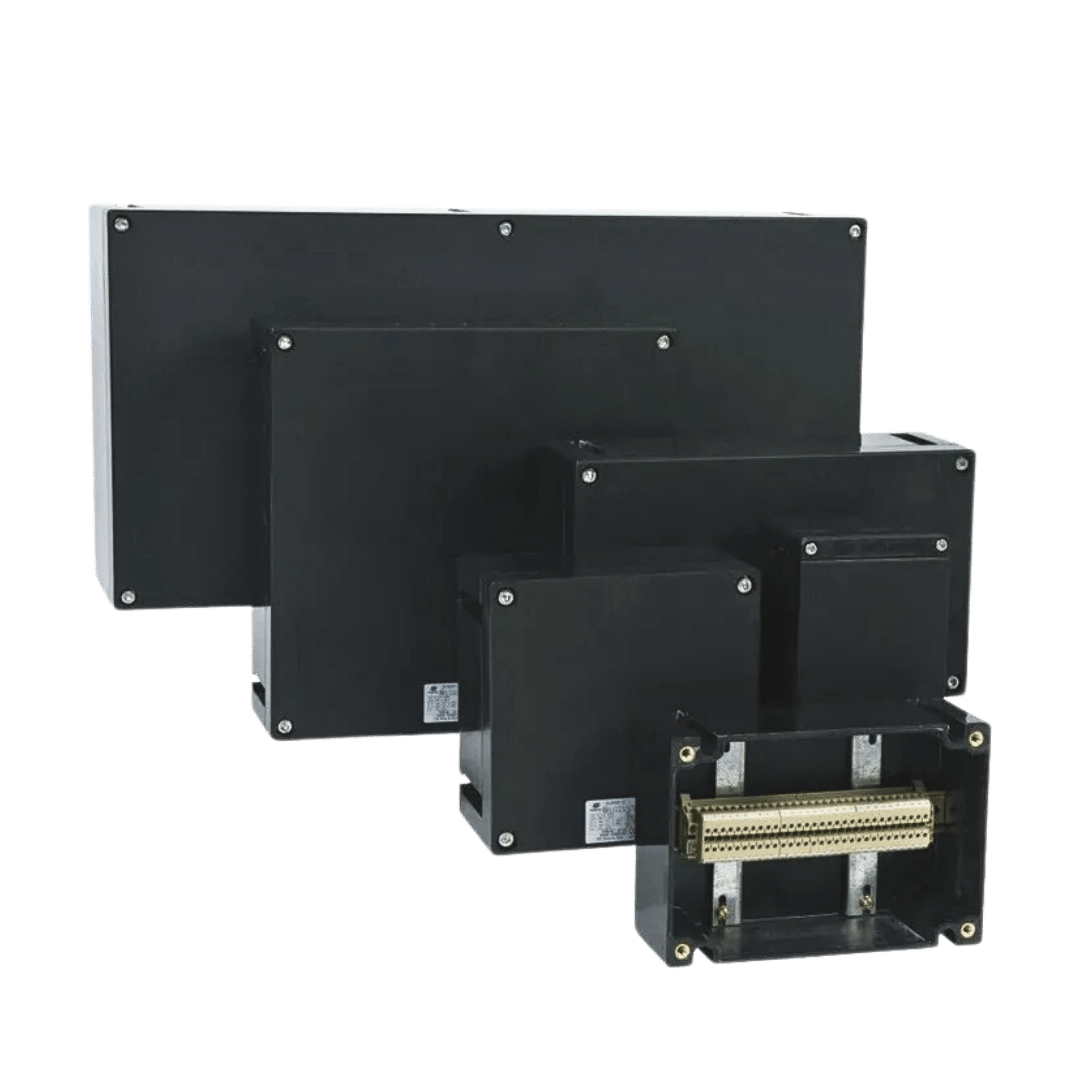

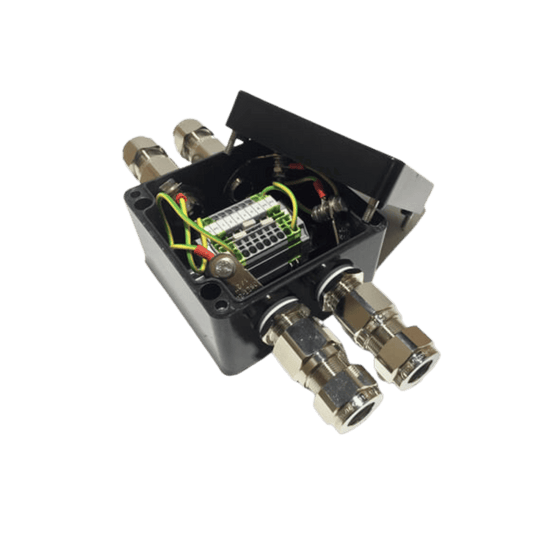

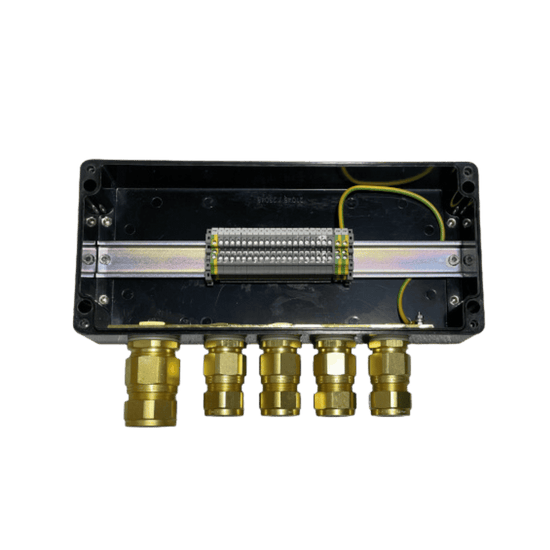

BXJ8050 series Ex Electrical Terminal Box Enclosure. Used for securing electrical connections and terminating wires that are ex rated, or possibly an IS circuit. Equipped with optional terminal rail, copper earth continuity plate and are also fitted with an external earth stud, blanking plugs. Designed to meet the highest hazardous area ex rated safety standards: IECEx ATEX Hazardous Area Zone 0,1,2.

KEY FEATURES

CONSTRUCTION: Designed with GRP(glass fibre-reinforced polyester resin) enclosure. Guarantees superior corrosion resistance and durability, mechanical impact resistance. ensuring connections stay secure in the harshest environments.

EPL Ex RATING: Engineered to provide Increased safety "e", Protection by enclosure "t", Intrinsic safety "I". This enclosure safeguards within Zone 0,1,2 HA areas of IECEx and ATEX.

CUSTOMISATION: Rated current, voltage terminal type, component type, copper bar size, overall dimensions.

SKU: BXJ8050

View full details

Technical Datasheets

Click here to view datasheet

Shipping

Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.


We aim to process and get your delivery with you as quick as possible.

Please contact us to retrieve the estimate lead times for your order.

Guarantee

We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.

Warranty

• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.

Please see our returns policy for more information.

  • Hazardous Area Certified

    Certification

    • IECEX: CQM 13.0031X
    • ATEX: LCIE 13 ATEX 3036X

    Zone Location

    IECEx

    • Ex e IIC T6 or T5 Gb
    • Ex ia IIC T6 Ga
    • Ex tb IIIC T80℃ Db IP66

    ATEX

    • Ex II 2 G Ex e IIC T6 or T5 Gb
    • Ex II 1 G Ex ia IIC T6 Ga
    • Ex II 2 D Ex tb IIIC T80℃ Db IP66

  • Electrical Safety Certified

    Conformity Standards:

    • EN; IEC

    Electrical Specifications

    • IP66
    • GRP(glass fibre-reinforced polyester resin) enclosure.
    • Rated Voltage: Max. 690V
    • Rated Current: 5A~ 125A

  • Customisation

    We can help facilitate fabrication build of your enclosure.

    • DIN rails.
    • Cable entry holes.
    • Cable glands and blanking plugs.
    • Terminals: SAK, WDU, WPE, M.
