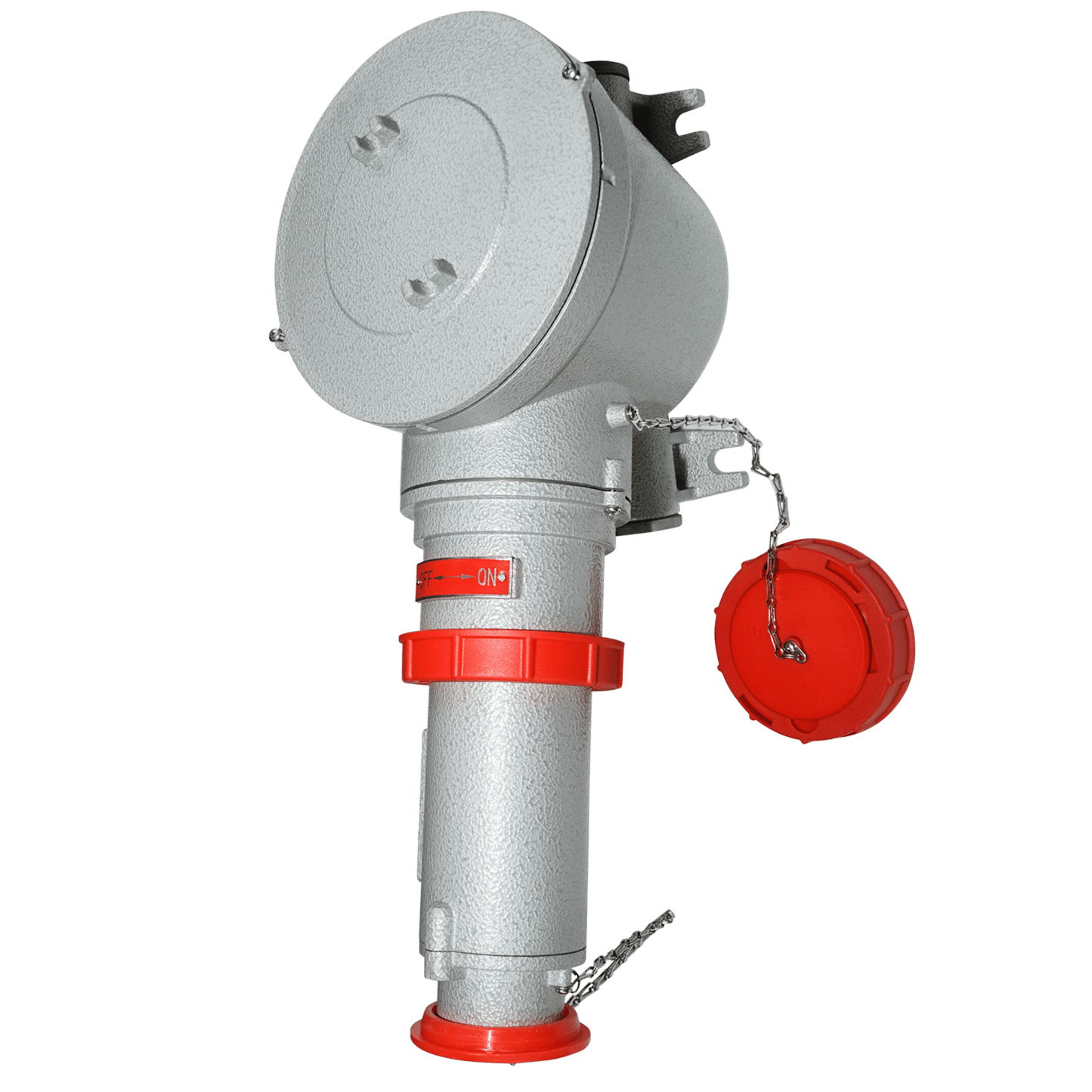

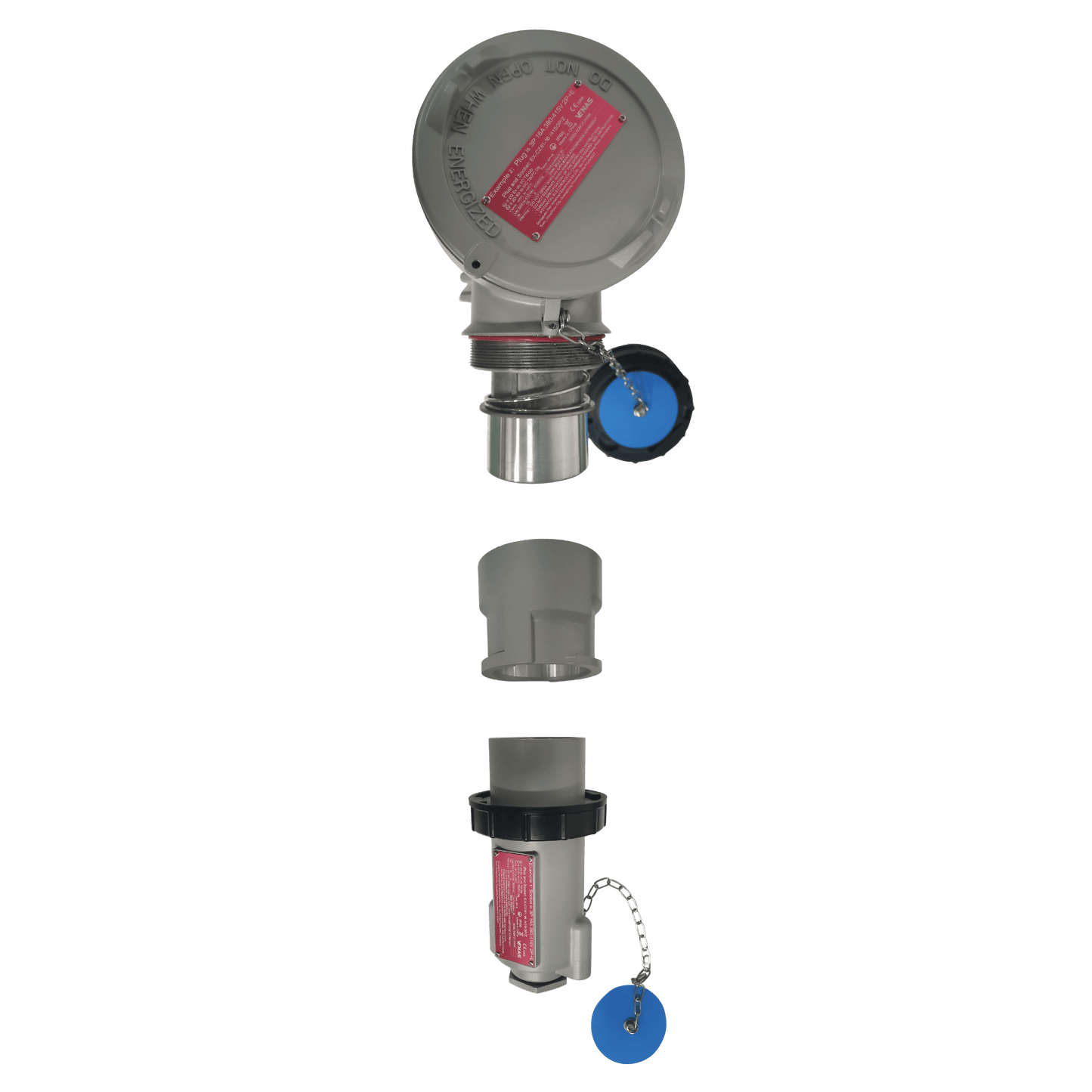

Plug and Socket 1-3Pole 63A - IECEx ATEX Hazardous Area Zone 1,2

Plug and Socket 1-3Pole 63A - IECEx ATEX Hazardous Area Zone 1,2

£768.00 GBP
£768.00 GBP
Sale Pre order now
GST and Shipping is calculated at checkout.

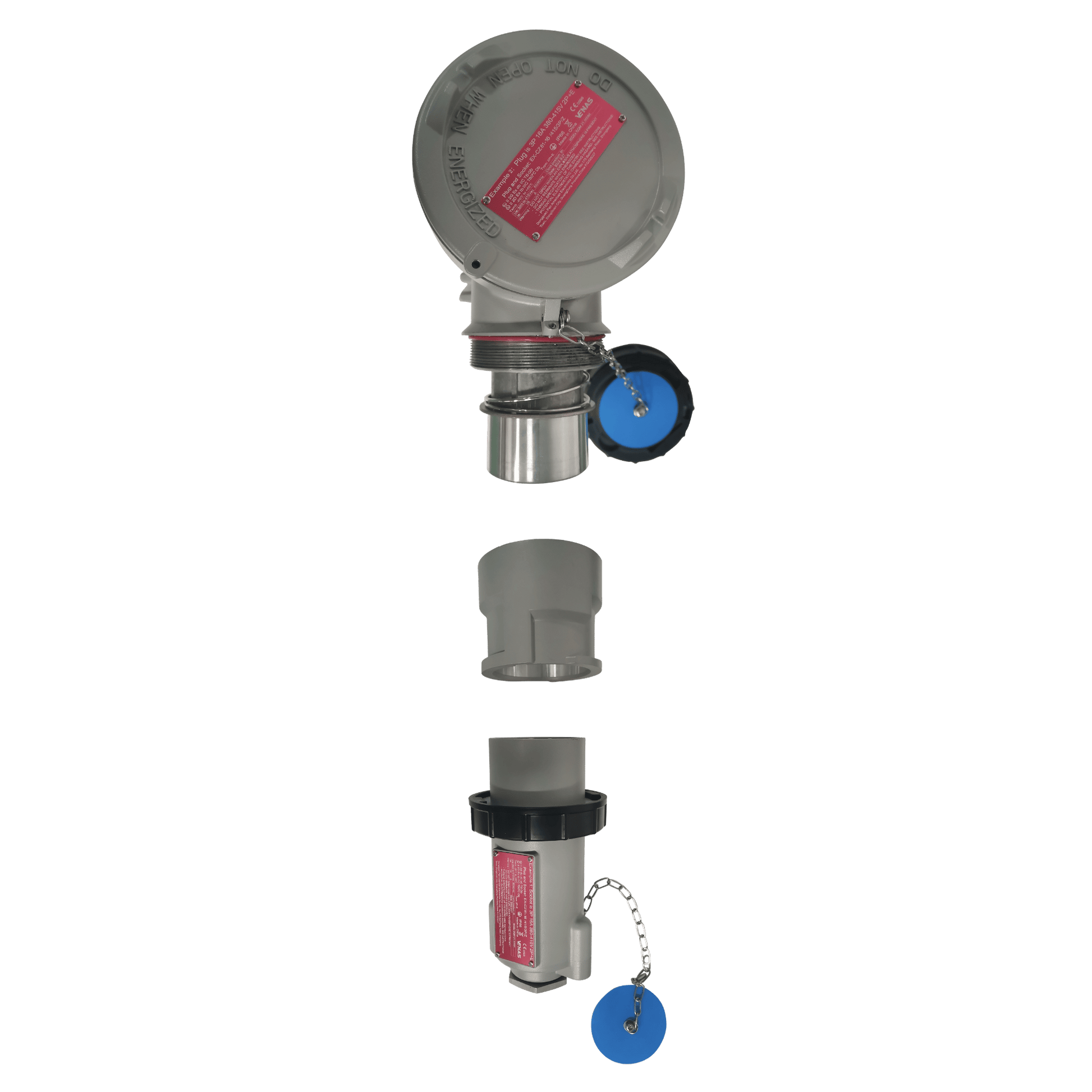

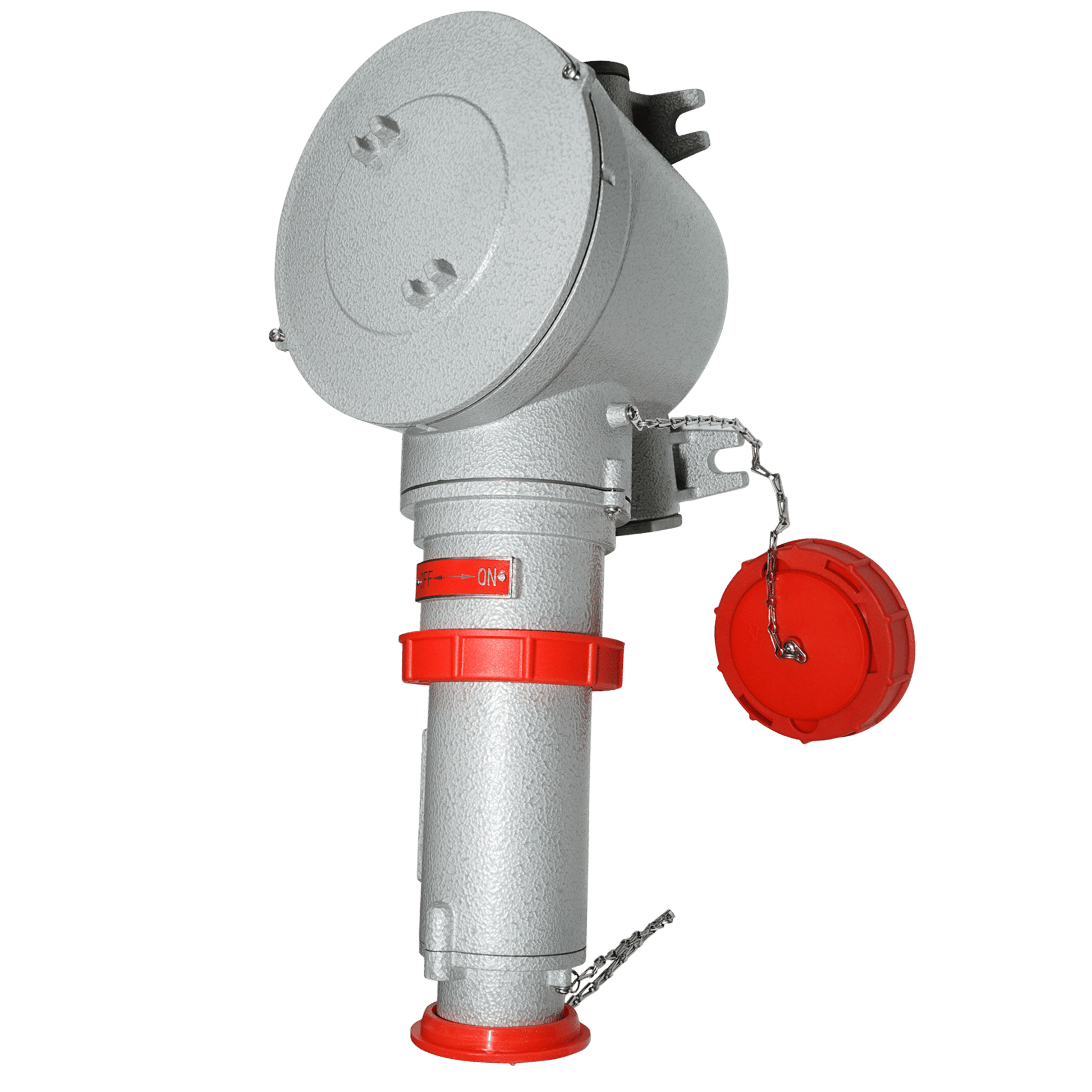

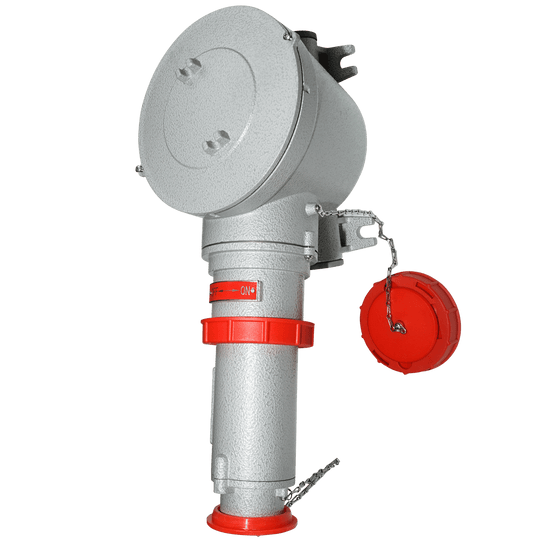

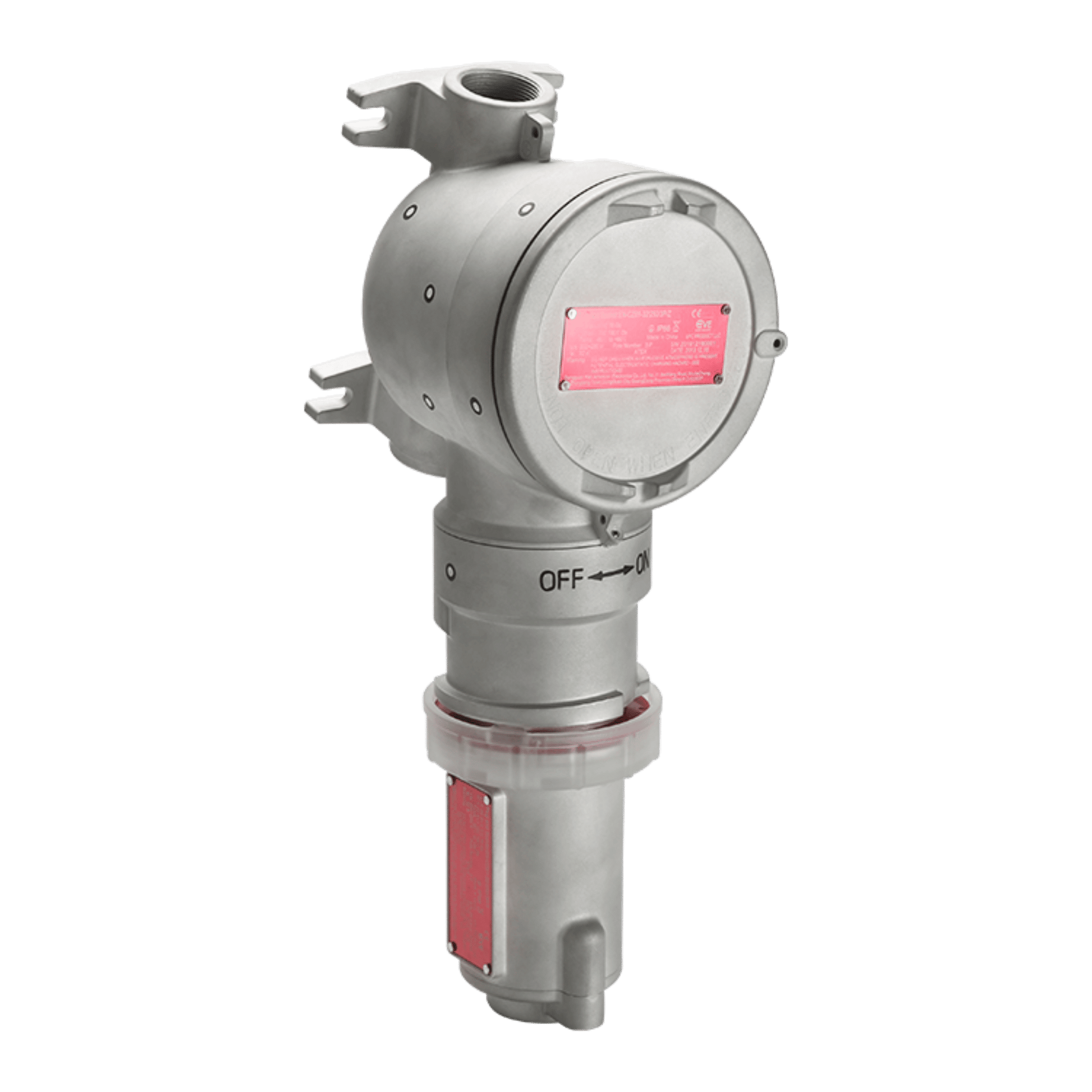

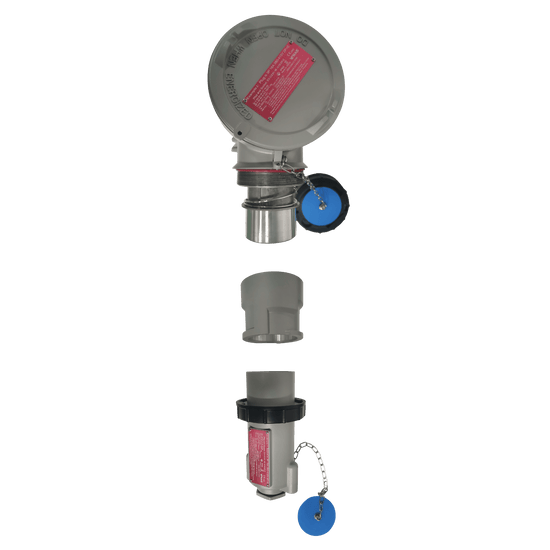

The explosion-proof plug and socket model EX-CZ81 series consist of a plug and a socket in type of explosion protection ‘db’ for use in explosive gas atmospheres, and in type of explosion protection ‘tb’ for use in explosive dust atmospheres. The plug and sockets are mechanically/electrically interlocked preventing the separation of the plug and socket when the contacts are energized. The plug and the sockets are provided with cable entry openings. In the AC 50 / 60 Hz circuit, it can be used as the connection of electrical equipment and power supply, as well as the connection of remote cable. It can be used for cable wiring or steel pipe wiring.

Housing and cover are made of Marine grade copper free aluminium light alloy. The fasteners screws are made of stainless steel. Surface electrostatic powder spraying treatment. The conductive rod and the conductive sleeve are made of copper, and the surface is plated with silver.

View full details

Technical Datasheet

Click Here to view Datasheet

Shipping

Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.


We aim to process and get your delivery with you as quick as possible.

Please contact us to retrieve the estimate lead times for your order.

Guarantee

We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.

Warranty

• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.

Please see our returns policy for more information.

  • Hazardous Area Certified

    Certificate Number

    • IECEx CQM 21.0008X

    Type of protection:

    Protection level marking:

  • Customisable Configuration

    • Rated Current

    16A or 20A
    32A or 30A

    • Rated Voltage

    100-500V

    • Pole Configuration

    1P+N+E
    2P+E
    2P+N+E
    3P+E
    3P+N+E

  • Construction

    • Copper free aluminium light alloy.
    • Electrostatic powder spray coating.
    • Electrical insulation parts made of PC or DMC.
