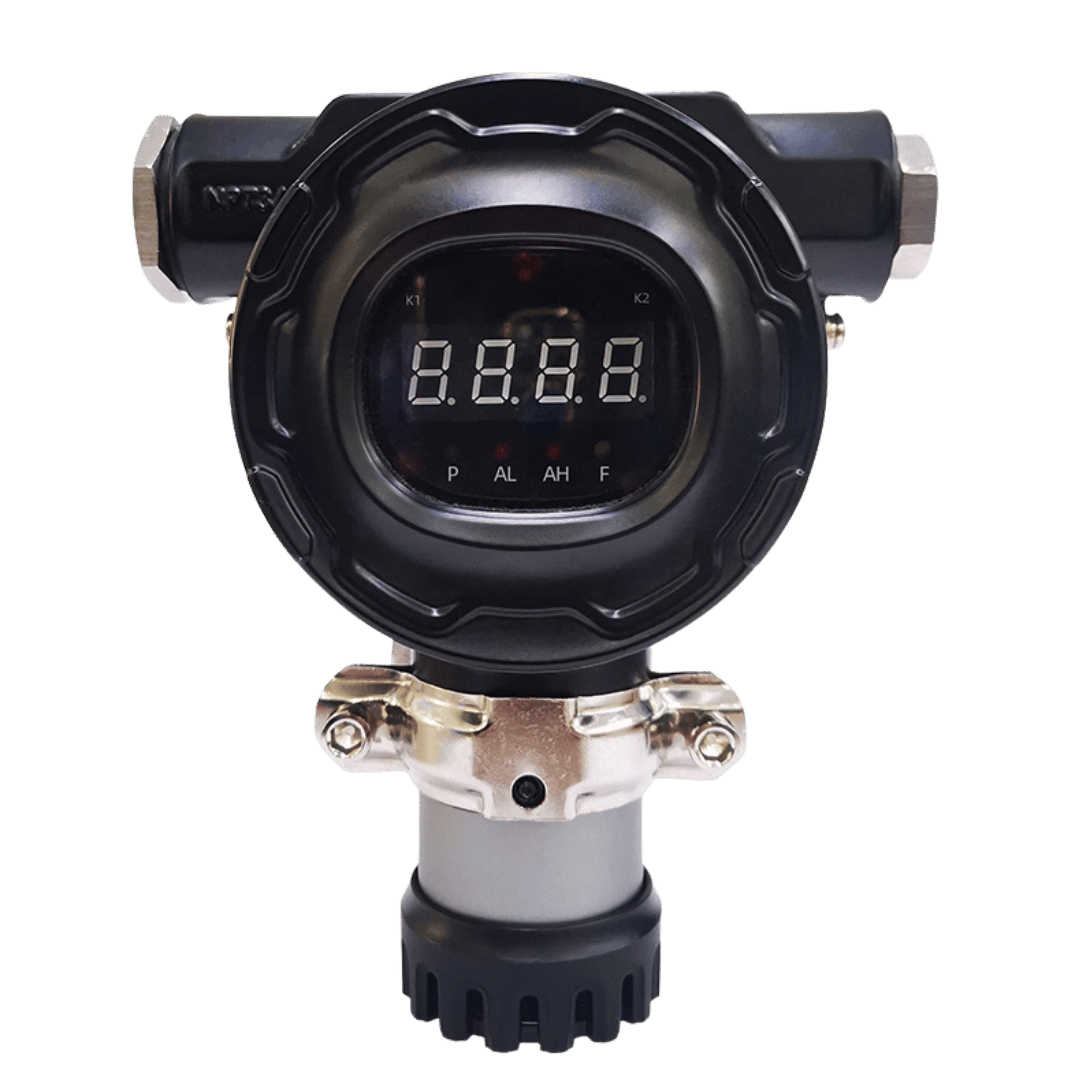

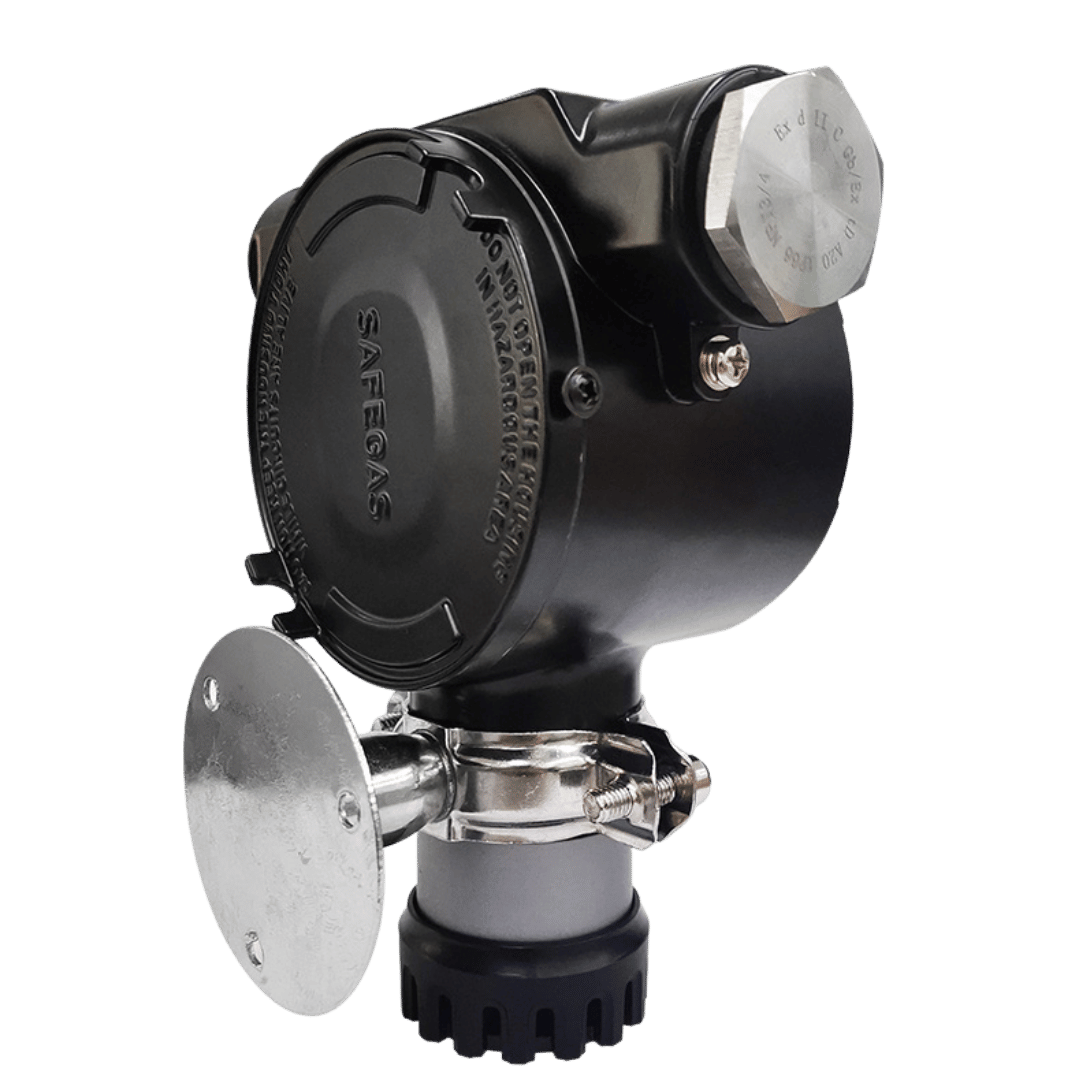

H2 Hydrogen Fixed Gas Detector Monitor - IECEx ATEX Hazardous Area Zone 1,2
H2 Hydrogen Fixed Gas Detector Monitor - IECEx ATEX Hazardous Area Zone 1,2
Couldn't load pickup availability

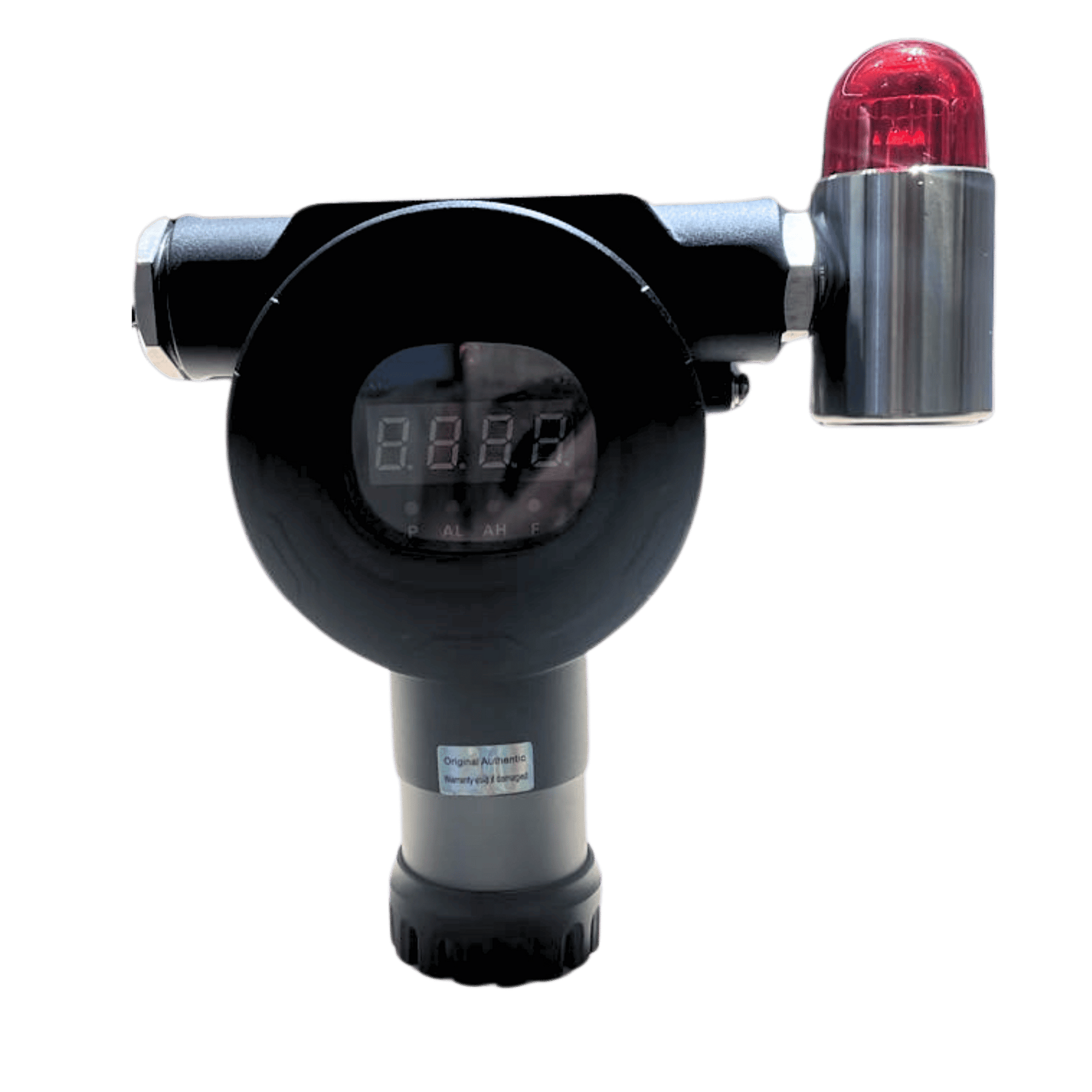

The SG100 H2 Hydrogen Online Gas Detector, sets the stand in Ex rated explosion-proof gas detection. Engineered to endure and perform in the harsh challenges of the industrial environments with moisture, dirt, dust, corrosion, and vibration.
Harnessing equipment protection levels of Intrinsic Safety "ia", Flameproof "db". Suited for the most challenging hazardous atmospheric conditions found in industries such as oil and gas, marine, petrochemical, chemical, petroleum, manufacturing etc. Covered by the IECEx and ATEX certification, brings a compliant solution to hazardous areas.
Adopting intelligent pluggable fixed gas detector, which is easily for maintenance after installation and continuous monitoring of combustible, flammable and toxic gases, model dependant. Configured via 3-wire 4-20 mA analogue output with relays, and optional HART, RS485 Modbus protocol, making it compatible with most control systems. Additional magnetic wand design, it’s easier to navigate the control menu.
Collapsible content
Technical Datasheet
Shipping
We aim to process and get your delivery with you as quick as possible -
Shipping rates and delivery times are calculated at checkout.
Guarantee
We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.
Warranty
• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
Please see our returns policy for more information.
Calibration
To ensure you keep up to date with your metrology requirements, by adding the traceable standards calibration test report certificate.
-
Hazardous Area Certified
Certification
- IECEx CQM 23.0027X
Equipment Protection Level
IECEx
- Ex db IIC T6 Gb
- Ex db ia IIC T6 Gb (without LEL sensor)
- Ex da db ia IIC T6 Gb (with separaed certified LEL sensor)
-
FEATURES
Modular gas chamber for maintenance simply and conveniently
- Plug and play air chamber module replacement.
- Two-key magnetic bar design, no need to open the cover, to achieve on-site maintenance and operation of the detector in any explosion-proof area.
- 24h continuously monitoring, data will real-time display.
-
FEATURES
- Standard 4-20mA current signal, RS485 digital signal, 1 set of relay signal output
- Optional 2 groups of relay signals, voltage 1 ~ 5V, standard Hart
- Optional LORA, 4G and other wireless transmission.
- Can be installed with computer software, to transmit the data to computer, workers can remote monitor the data
- Die-cast aluminium case, IP66/67 protection degree, water-proof, dust-proof, explosion-proof.
Applications
-
Power Plants and Energy Sector
Hydrogen is used in power plants for cooling generators and in renewable energy applications such as hydrogen fuel cells. Gas detectors are essential for monitoring potential leaks in power generation facilities to prevent accidents and equipment damage.
-
Industrial Manufacturing
In industrial settings, hydrogen is commonly used in metal refining, glass production, and the chemical industry. H₂ gas detectors help monitor hydrogen levels to prevent leaks that could lead to fires or explosions. Industries such as electronics manufacturing, where hydrogen is used in annealing and reduction processes, also benefit from continuous monitoring.
-
Hydrogen Fuel Stations and Vehicles
With the rise of hydrogen fuel cell technology, H₂ gas detectors are increasingly used in hydrogen refueling stations and fuel cell vehicles. These detectors help identify leaks in storage tanks, pipelines, and fuel cell systems to ensure the safety of workers and consumers.
Add Calibration Service
Ensure to keep up to date with your metrology requirements, by adding the calibration test report certificate.
Hydrogen gas (H₂) is the lightest and most abundant element in the universe. Being significantly lighter than air, hydrogen rapidly rises and disperses in open environments, reducing the risk of accumulation. However, in enclosed spaces or areas with limited ventilation, hydrogen can pose a serious safety hazard due to its highly flammable nature.
Composed of two hydrogen atoms, molecular hydrogen is a colourless, odourless, and tasteless gas. Unlike ammonia, hydrogen does not produce vapours heavier than air under any conditions, making it less likely to settle near ground level. However, its extremely low density and high diffusivity require strict containment measures in industrial applications.
-
Pre & Post After Sales Support
After Sales Support
We offer after sales support on all our products including
- Installation
- Configuration
- Maintenance
- Repair
- Calibration
-
Calibration & Repair
Calibration ServicesOur accredited laboratory is tailored to conduct traceable standard calibrations and repairs on all our equipment.
Contact form
Flammability and Safety Risks
One of the primary concerns associated with hydrogen gas is its high flammability. Hydrogen has a lower explosive limit (LEL) of 4% and an upper explosive limit (UEL) of 75% in air, meaning it can ignite over a wide concentration range. A single spark or heat source can cause rapid combustion, making proper leak detection and ventilation essential.
Additionally, hydrogen burns with an almost invisible flame, posing an increased risk of undetected fires. This necessitates the use of specialized flame detection systems in facilities where hydrogen is stored or utilized.
