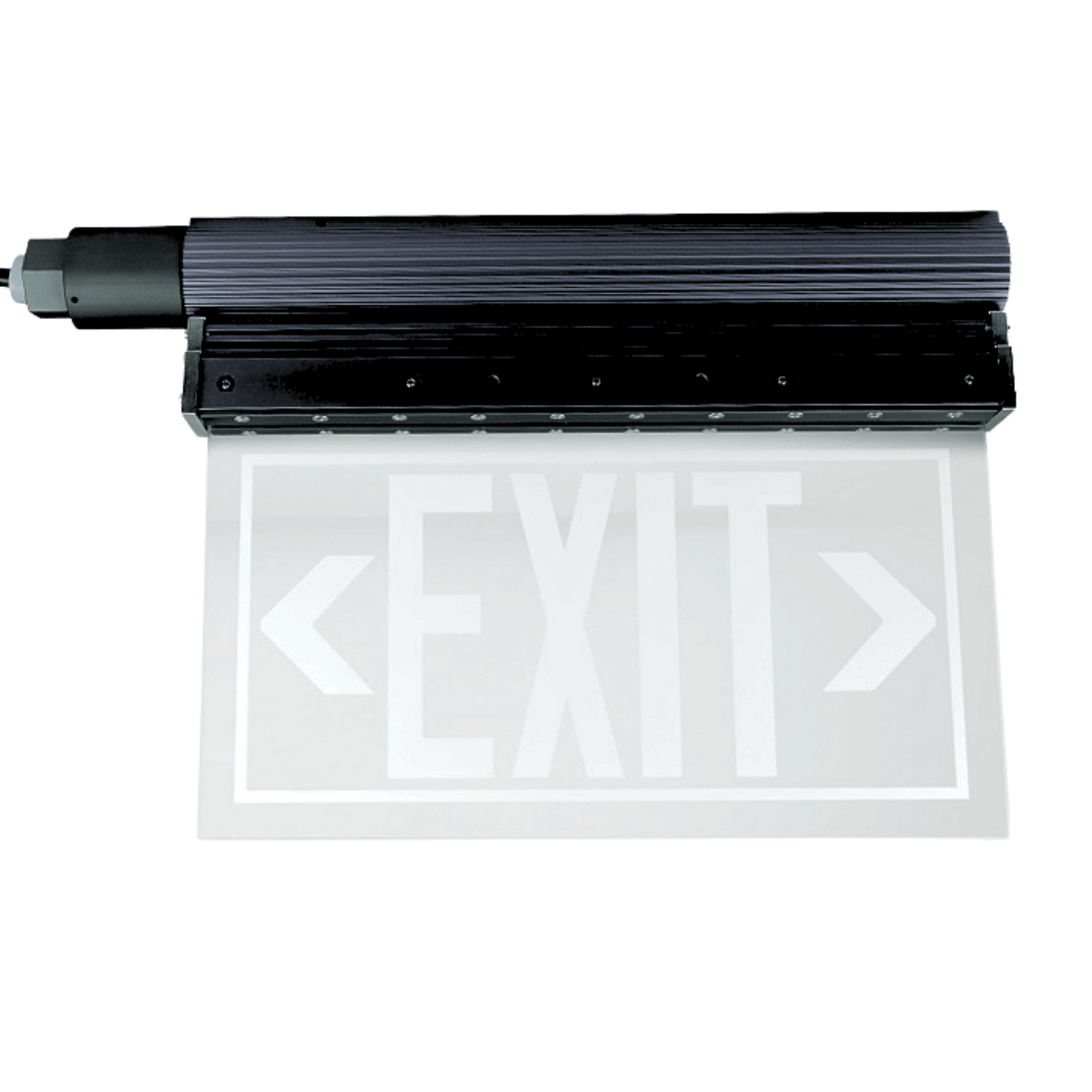

Ex LED Emergency Exit Light - IECEx ATEX Hazardous Area Zone 1,2

Ex LED Emergency Exit Light - IECEx ATEX Hazardous Area Zone 1,2

£392.00 GBP
£392.00 GBP
Sale Pre order now
GST and Shipping is calculated at checkout.

7 in Stock Ready to Ship

Hazardous Area Emergency Exit Light with Backup Battery is widely used in places of hazardous atmospheres, such as Petrochemical, Chemical, Petroleum, Oil and Gas industries.

Main Features:

  • Protection Type: Flameproof 'ib', Intrinsic Safe
  • Wattage 3W
  • Size - 409*281*46mm
  • Input voltage - 100-277VAC, 50/60Hz
  • Emergency Time - 3 hours
  • Ingress protection rating IP66

SKU Model: Ex-3WVNGD180 (Green LEDs)

View full details

Technical Datasheet

Click here to see the datasheet

Shipping

Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.


We aim to process and get your delivery with you as quick as possible.

Please contact us to retrieve the estimate lead times for your order.

Guarantee

We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.

Warranty

• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.

Please see our returns policy for more information.

  • Hazardous Area Certified

    Certification

    • IECEx NEP 23.0006X
    • CML 23ATEX2356X

    Zones

    IECEx

    • Ex ib mb ⅡC T4 Gb
    • Ex tb ⅢC T130℃ Db

    ATEX

    Ex II 2 G D

    • Ex ib mb IIC T4 Gb
    • Ex tb IIIC T130°C Db
  • application industry ex lighting

    Features

    • Light weight and compact structure.
    • Integrated junction box for driver with emergency backup.
    • Ingress protection rating IP66.
      Low energy consumption.
    • 3-hour emergency operation.
    • Stainless-steel exposed fasteners with high corrosion resistance.
    • Pendant, Wall, Pole Mounting

Case Studies

  • lighting design image 3

    Propane Transportation Facility

    Propane transportation facility lighting design made by our lighting engineers. This install we used *3 40W Ex rated Zone 1 LED Jelly Jar lights, with mounted height of 4m. The propane transport area, measuring 2.4x12m achieved an average illumination of 12.9 foot-candles (fc).

  • Chemical Plant

    Chemical plant lighting photometric design made by our lighting engineers. This install we used *4 150W Ex rated Zone 1 LED Jelly Jar lights, with mounted height of 4.5m. The sub level grading height was 3m, and achieved an average illumination of 70fc while the main level ceiling was 4.2m with an illumination average of 34.5 fc.

  • lighting design image 1

    Paint Booth

    Spray paint booth lighting photometric design made by our lighting engineers. This install we used *9 60W Ex rated Zone 1 LED Linear Lights, used on a 12x2.4m paint booth with 2.7m ceilings. The fixtures were mounted on the wall and provided a maximum of 290 foot candles with a uniformity of 1.22-3.96.

Lighting Design

  • lighting_design_3

    Illumination Mapping

    2D and 3D mapping helps better placement of lighting, as a result of the colour view from the pseudo view of coverage. Resulting in cost effective solution to knowing exactly where and how many lights are needed.

  • lighting design 2

    3D Site Modelling

    A professional addition to provide a detailed layout of the near real life site that includes all the construction variable on site. Visually seeing how object are effecting blind spots.

  • lighting design 1

    2D Light Positioning

    Using your site drawing plans, we can plot the lights and draw a coverage area via the spread of lux levels, from the lights.
