O3 Ozone Fixed Gas Detector Monitor - IECEx ATEX Hazardous Area Zone 1,2
O3 Ozone Fixed Gas Detector Monitor - IECEx ATEX Hazardous Area Zone 1,2
Couldn't load pickup availability

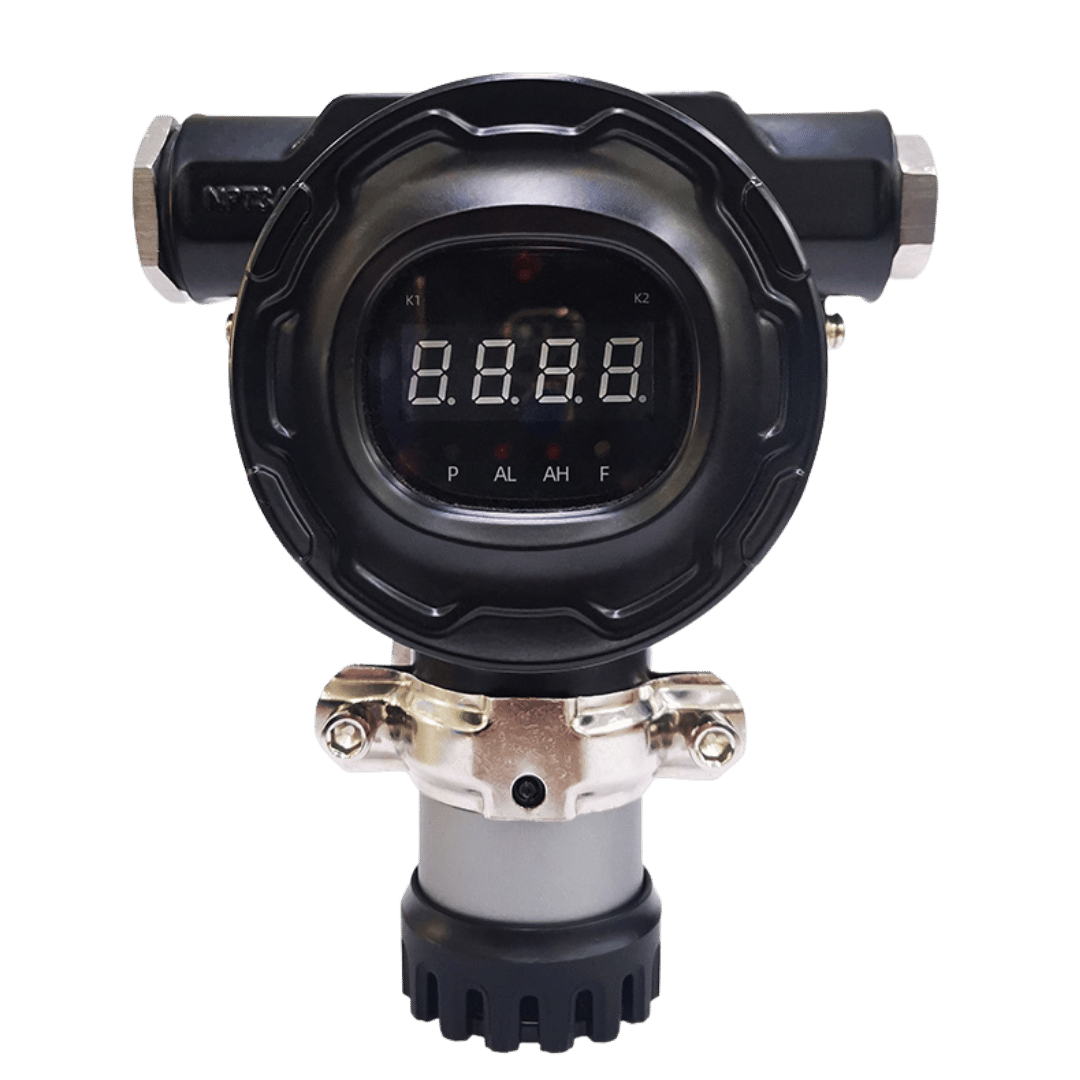

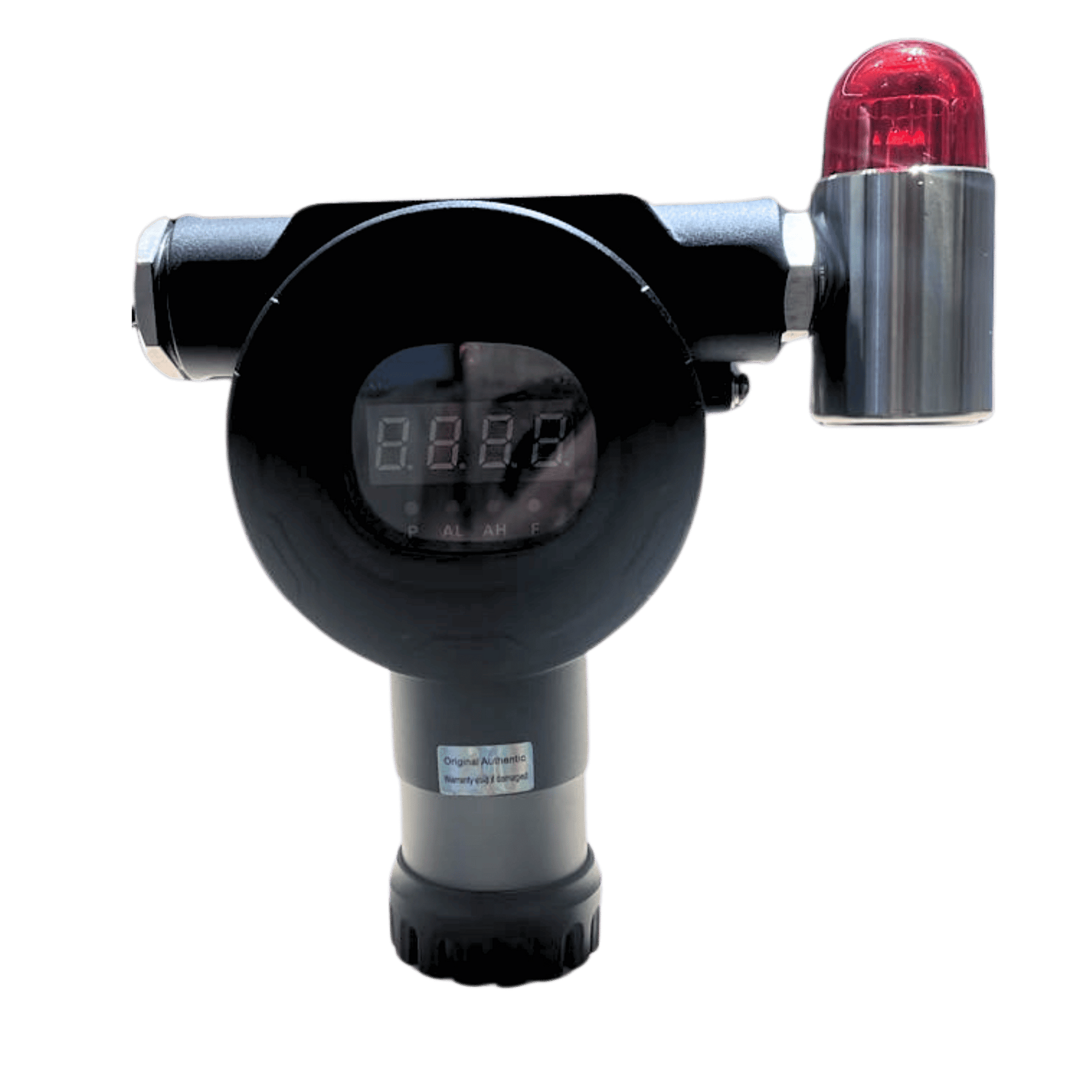

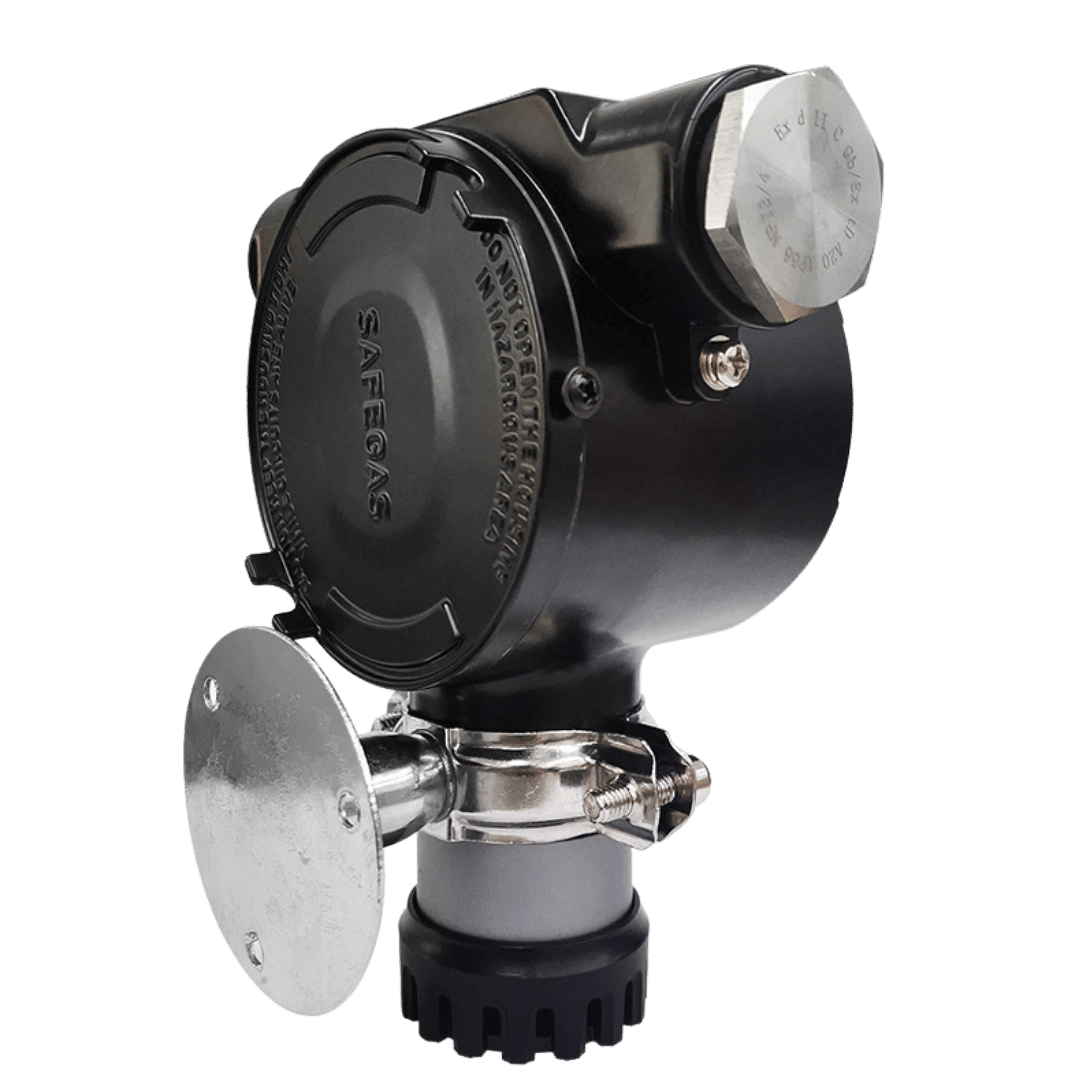

The SG100 O3 Ozone Online Gas Detector, sets the stand in Ex rated explosion-proof gas detection. Engineered to endure and perform in the harsh challenges of the industrial environments with moisture, dirt, dust, corrosion, and vibration.
Harnessing equipment protection levels of Intrinsic Safety "ia", Flameproof "db". Suited for the most challenging hazardous atmospheric conditions found in industries such as oil and gas, marine, petrochemical, chemical, petroleum, manufacturing etc. Covered by the IECEx and ATEX certification, brings a compliant solution to hazardous areas.
Adopting intelligent pluggable fixed gas detector, which is easily for maintenance after installation and continuous monitoring of combustible, flammable and toxic gases, model dependant. Configured via 3-wire 4-20 mA analogue output with relays, and optional HART, RS485 Modbus protocol, making it compatible with most control systems. Additional magnetic wand design, it’s easier to navigate the control menu.
Collapsible content
Technical Datasheet
Shipping
We aim to process and get your delivery with you as quick as possible -
Shipping rates and delivery times are calculated at checkout.
Guarantee
We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.
Warranty
• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
Please see our returns policy for more information.
Calibration
To ensure you keep up to date with your metrology requirements, by adding the traceable standards calibration test report certificate.
-
Hazardous Area Certified
Certification
- IECEx CQM 23.0027X
Equipment Protection Level
IECEx
- Ex db IIC T6 Gb
- Ex db ia IIC T6 Gb (without LEL sensor)
- Ex da db ia IIC T6 Gb (with separaed certified LEL sensor)
-
FEATURES
Modular gas chamber for maintenance simply and conveniently
- Plug and play air chamber module replacement.
- Two-key magnetic bar design, no need to open the cover, to achieve on-site maintenance and operation of the detector in any explosion-proof area.
- 24h continuously monitoring, data will real-time display.
-
FEATURES
- Standard 4-20mA current signal, RS485 digital signal, 1 set of relay signal output
- Optional 2 groups of relay signals, voltage 1 ~ 5V, standard Hart
- Optional LORA, 4G and other wireless transmission.
- Can be installed with computer software, to transmit the data to computer, workers can remote monitor the data
- Die-cast aluminium case, IP66/67 protection degree, water-proof, dust-proof, explosion-proof.
Applications
-

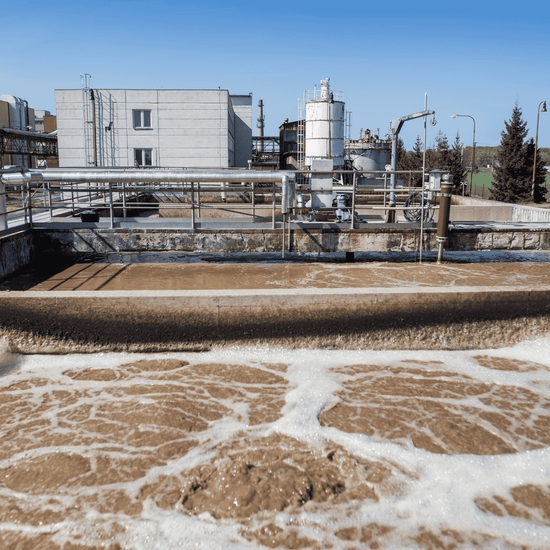

Water and Wastewater Treatment
Ozone is an effective disinfectant for killing bacteria, viruses, and organic contaminants in drinking water and sewage treatment plants.
-

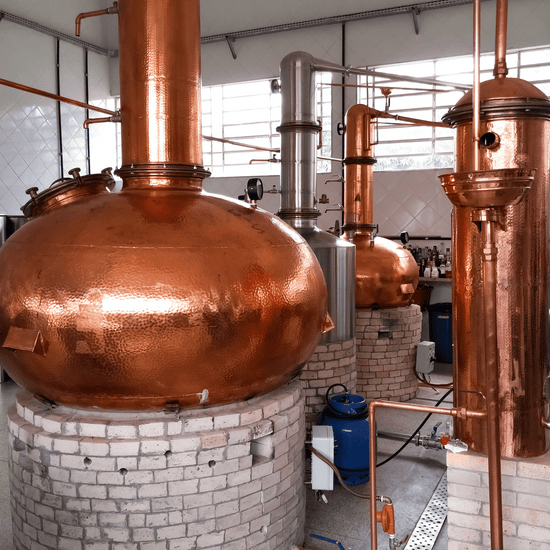

Food and Beverage Industry
Ozone is utilised to sanitize food processing equipment and extend the shelf life of perishable goods
-

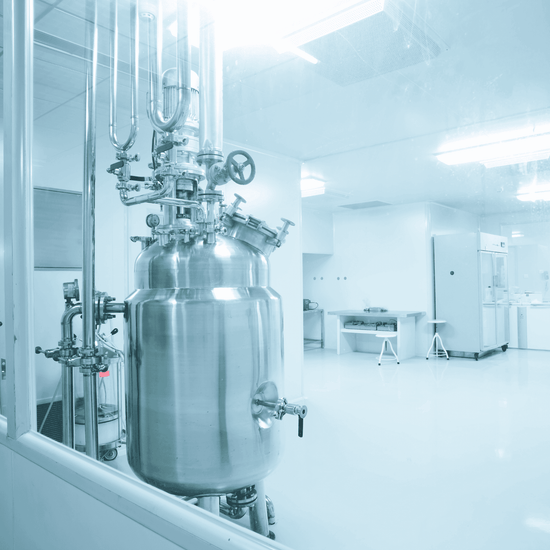

Chemical Synthesis
Applied in bleaching, organic synthesis, and advanced oxidation processes for industrial manufacturing.
Health Effects and Exposure Limits
Exposure to ozone can cause respiratory irritation, chest pain, coughing, and exacerbation of lung diseases such as asthma. Prolonged or high-level exposure can lead to serious health effects, including lung inflammation and decreased lung function. Regulatory agencies have established strict exposure limits:
- OSHA (Occupational Safety and Health Administration): Permissible exposure limit (PEL) is 0.1 ppm over an 8-hour work shift.
- NIOSH (National Institute for Occupational Safety and Health): Recommended exposure limit (REL) is 0.1 ppm for an 8-hour period, with a short-term exposure limit (STEL) of 0.3 ppm.
- EPA (Environmental Protection Agency): The National Ambient Air Quality Standard (NAAQS) for ozone in ambient air is 0.070 ppm over an 8-hour period.
Add Calibration Service
Ensure to keep up to date with your metrology requirements, by adding the calibration test report certificate.
-
Pre & Post After Sales Support
After Sales Support
We offer after sales support on all our products including
- Installation
- Configuration
- Maintenance
- Repair
- Calibration
-
Calibration & Repair
Calibration ServicesOur accredited laboratory is tailored to conduct traceable standard calibrations and repairs on all our equipment.
Contact form
Safety Measures and Handling
Given its reactivity and potential health hazards, proper precautions are necessary when working with ozone:
- Ventilation and Containment: Ensure adequate airflow and use containment systems to prevent ozone accumulation.
- Ozone Monitors and Alarms: Install detection systems to monitor ozone levels and alert personnel to unsafe concentrations.
- Personal Protective Equipment (PPE): Workers handling ozone should wear appropriate respiratory protection and protective clothing.
- Exposure Control Measures: Limit ozone exposure time and ensure compliance with established safety guidelines.
