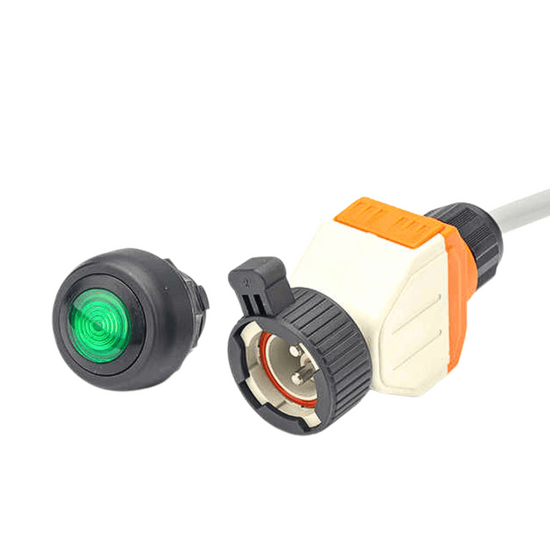

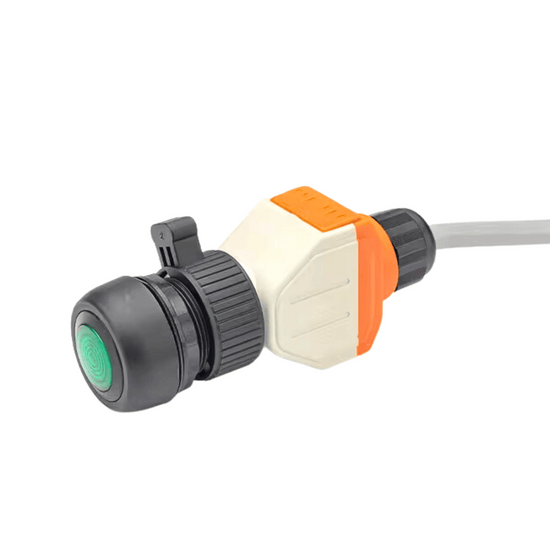

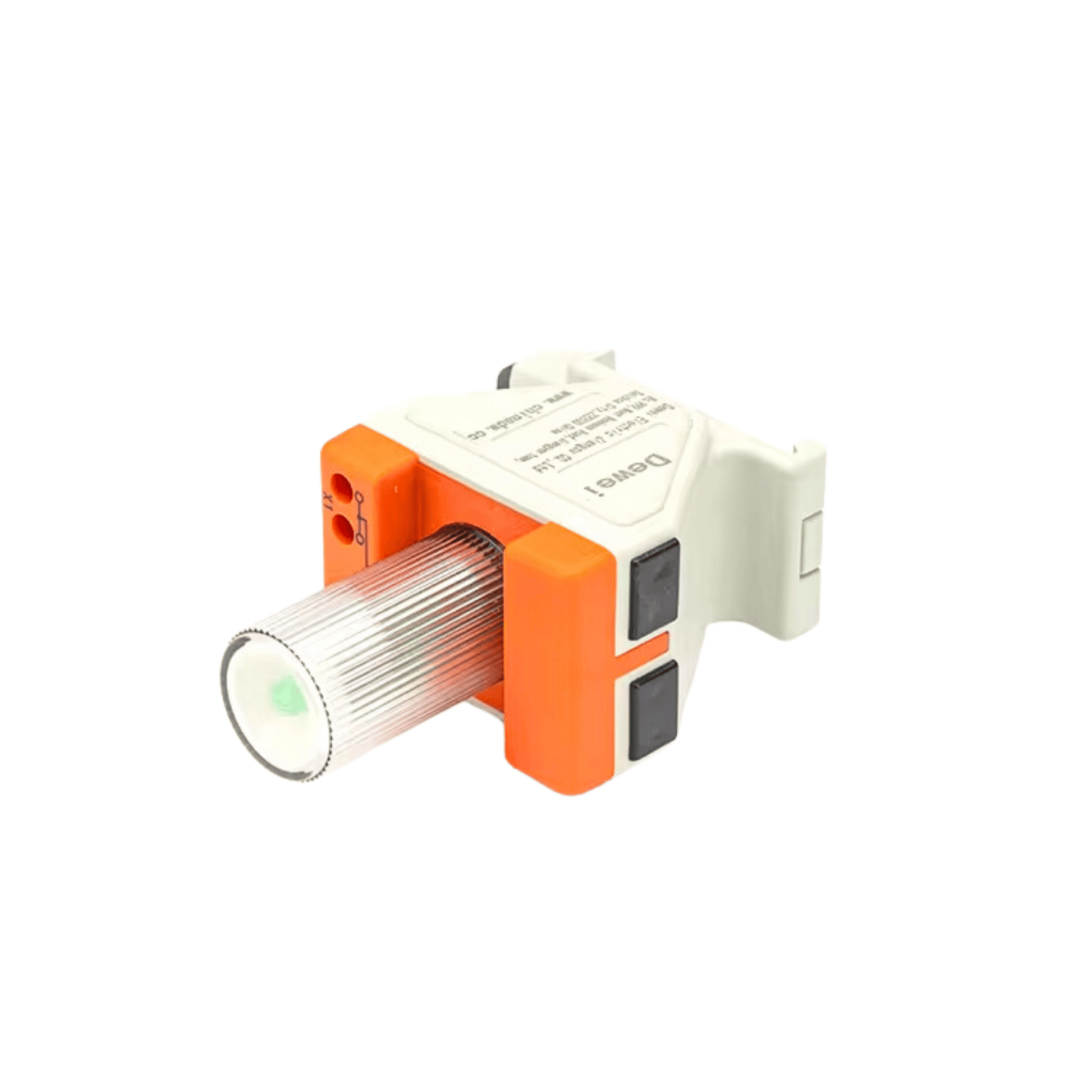

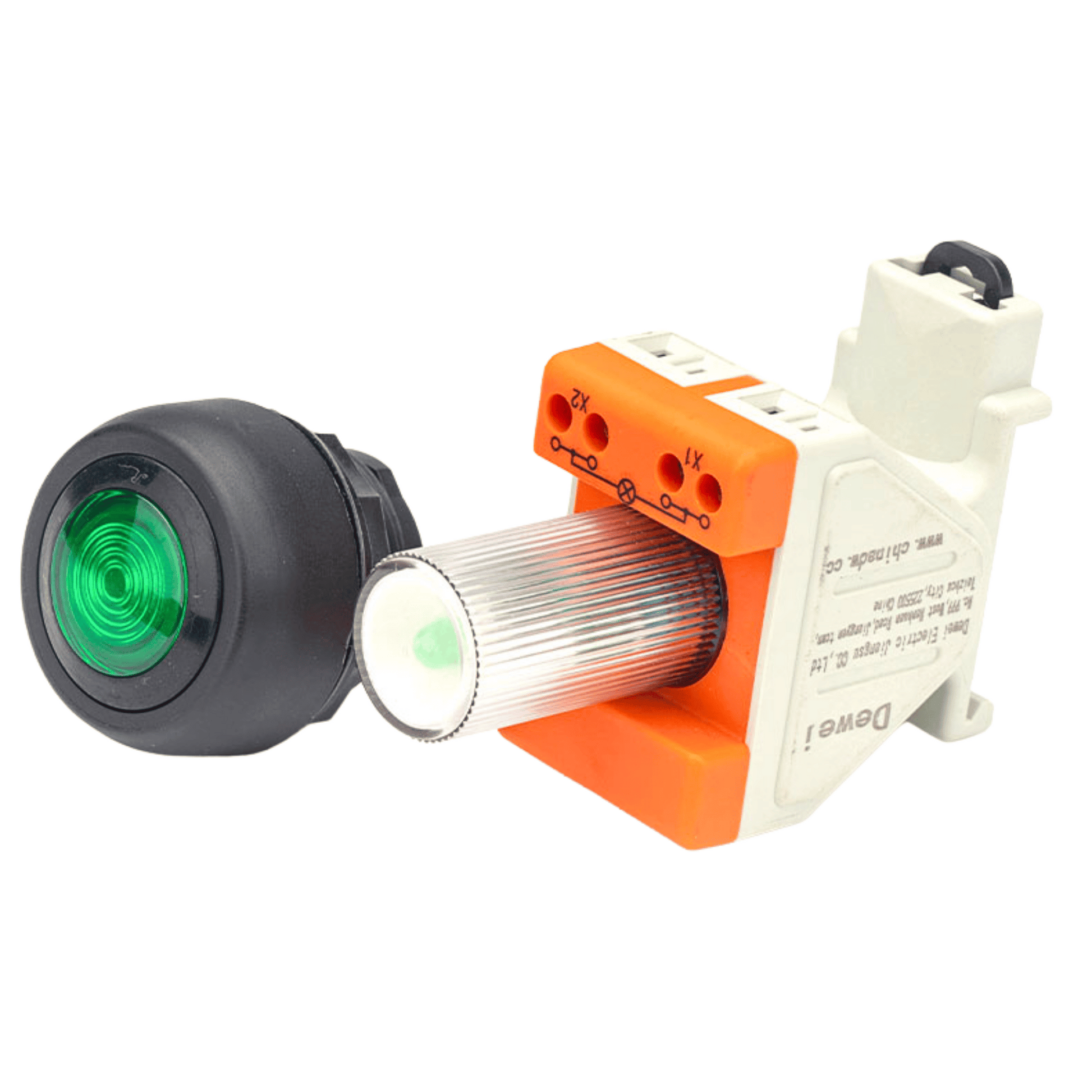

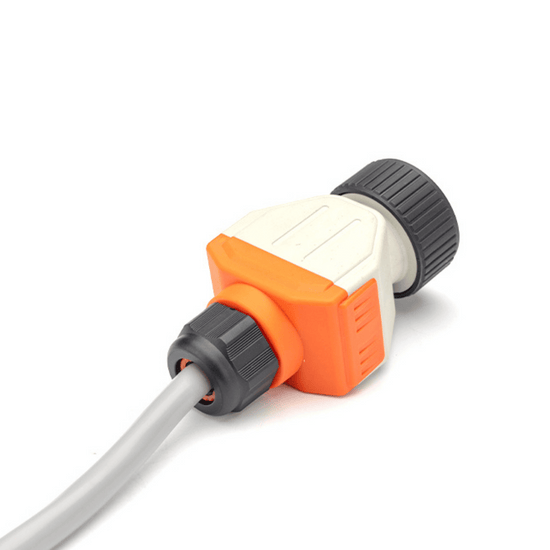

Push Button Switch Light - Panel Rail Lid Mount Lamp - IECEx ATEX Zone 1,2

Push Button Switch Light - Panel Rail Lid Mount Lamp - IECEx ATEX Zone 1,2

£33.00 GBP
£33.00 GBP
Sale Pre order now
GST and Shipping is calculated at checkout.
54 in Stock Ready to Ship

IECEx and ATEX certified Ex electrical control panel push switches, indicators, emergency stop switches, and selector switches. Designed for safety and reliability, our products ensure seamless functionality in even the most challenging environments. Boost efficiency and compliance with top-tier components trusted by industries worldwide.

FEATURES
  • Input Voltage(V): AC 220V( ± 10%)
  • Lamp Body Material: ABS
  • CRI (Ra): 50
  • Light Source: LED
  • IP Rating: IP66
  • Protection rating: IK10
  • Lifespan (hours): 50000
  • Bolts and screws: Stainless steel captive variety
  • Zone: 1/2 ,21/22

Please contact us with the SKU model selection tool via the datasheet, located under technical datasheet tab below

View full details

Technical Datasheet

Click Here to see Datasheet

Shipping

Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.


We aim to process and get your delivery with you as quick as possible.

Please contact us to retrieve the estimate lead times for your order.

Guarantee

We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.

Warranty

• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.

Please see our returns policy for more information.

  • Hazardous Area Certified

    Certificate Number

    • IECEX: IECEx EUT 21.0009U
    • ATEX: EPT 21 ATEX 4699U

    Zone Location

    • IECEx: Ex db eb IIC Gb, Ex tb IIIC Db IP66
    • ATEX: Ex II 2 GD Ex db eb IIC Gb, Ex tb IIIC Db IP66

  • Electrical Safety Certified

    Functional safety certification

    • IEC60079-0,IEC60079-1, IEC60079-7, IEC60079-31
    • EN60079-0,EN60079-1, EN60079-7,EN60079-31

  • Variations

    • 0: 10 - 28 VDC
    • 1: 10 - 250 VDC/VAC
    • 2: 280 -415 VAC

    Mounting Type

    • Rail Mounted
    • Lid Mounted
    • Lid Mounting of board back cable.
    • Lid Mounting with cable
